Zund CNC Plotter Cutter Cutting Knife Blades — Z41, Z42C, Z43, Z60, Z61, Z62
Zund CNC Plotter Cutter Blades: Tungsten Carbide Excellence for Superior Cutting Precision
For industrial cutting tasks that demand accuracy, durability, and efficiency, Zund CNC plotter cutter blades stand out as a benchmark of excellence. Crafted from premium tungsten carbide, these blades are engineered to deliver high performance across diverse materials, ensuring optimal results and streamlined operations for businesses. Below is an in-depth overview of the available blade models, their uses, and notable features.

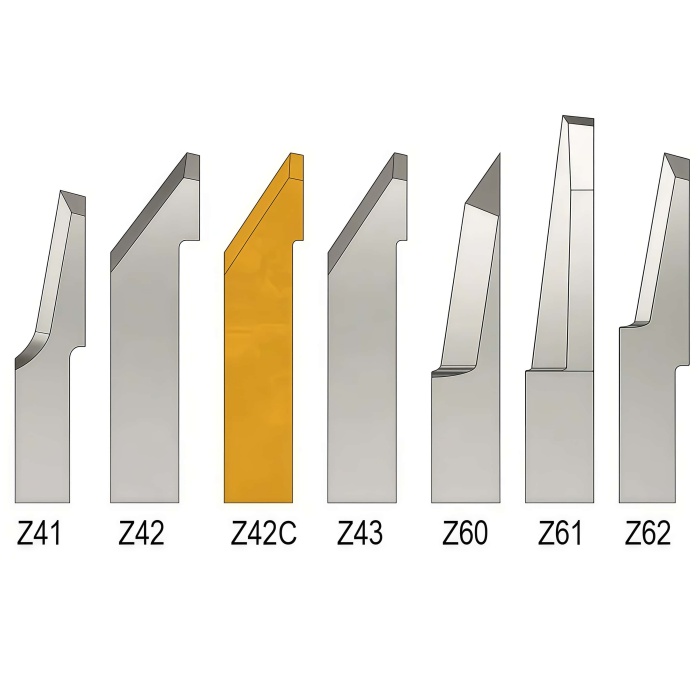

Blade Models and Distinct Features
1. Zund Z41: Flat Oscillating Blade
– Cutting Angle: 80°
– Maximum Cutting Depth: 11.3 mm
– Thickness:0.63 mm
– Applications:The Z41 blade excels in creating precise pre-cuts in a wide range of materials such as woven fabrics, leather, corrugated cardboard, textiles, non-woven materials, felt, foam, carbon fibers, aramid fibers, nylon, and polyester fabrics. Its oscillating design ensures consistent and accurate cuts for both soft and medium-density materials.
2. Zund Z42: Robust Oscillating Blade
– Cutting Type: Oscillating
– Maximum Cutting Depth: 7.8 mm (with 0.80 mm post-cut)
– Thickness： ~0.63 mm
– Applications: Designed for versatility, the Z42 blade is ideal for cutting materials like leather, foam board, textiles, and corrugated cardboard. It handles both pre-cutting and post-cutting tasks effectively, making it a strong choice for durable and multifaceted applications.
3. Zund Z42C: Flat Oscillating Blade
– Cutting Type: Flat Oscillating
– Maximum Cutting Depth: 7.8 mm
– Thickness: ~0.63 mm
– Applications: Similar to the Z42, the Z42C focuses on providing uniform cutting depths tailored for industries where precision is critical, such as textile manufacturing.
4. Zund Z43: Pointed Oscillating Blade
– Cutting Type: Pointed Oscillating
– Maximum Cutting Depth: 7.8 mm
– Thickness: 0.63 mm
– Applications: This blade incorporates a pointed tip, enabling smaller pre-cuts and more substantial post-cuts. It is specifically designed to handle tougher materials such as carpets, leather (including suede and hide), and dense textiles—ideal for sectors like upholstery, automotive design, and fashion.
5. Zund Z60: Heavy-Duty Oscillating Blade
– Cutting Type: Oscillating
– Maximum Cutting Depth:16.5 mm
– Thickness: Not specified
– Applications: Built for heavy-duty cutting tasks, the Z60 excels in handling thicker materials like foam, rubber, and multi-layered substrates. Its robust tungsten carbide construction ensures durability even under demanding conditions.
6. Zund Z61: Durable Tungsten Carbide Blade
– Cutting Type: Oscillating (specific details not provided)
– Maximum Cutting Depth & Thickness: Not specified
– Applications: Designed for industrial applications requiring precision in cutting dense or multi-layered materials, the Z61 offers strength and durability for challenging work environments.
7. Zund Z62: Enhanced Heavy-Duty Blade
– Cutting Type: Oscillating (specific details not provided)
– Maximum Cutting Depth & Thickness: Not specified
– Applications: With capabilities similar to the Z61 but enhanced for specialized needs, the Z62 delivers high performance in heavy-duty cutting tasks and ensures dependable precision across various tough materials.
Tungsten Carbide: A Benchmark of Quality
The standout feature of Zund CNC blades is their tungsten carbide composition, a material recognized for exceptional sharpness and longevity. This durability means these blades stay effective for longer periods compared to standard steel alternatives, reducing replacement frequency and minimizing downtime in production environments. As a result, these blades provide excellent value in high-volume or extensive industrial operations.
Broad Material Compatibility
Zund blades are highly adaptable, catering to a wide array of materials from soft textiles to rugged options like aramid fibers, carbon fibers, and thick foam boards. Their precise craftsmanship allows seamless application in industries such as garment production, automotive manufacturing, signage production, and upholstery, among others.
Global Availability and Service Excellence
Zund blades are easily accessible worldwide with well-established shipping networks across Europe, North America, Asia, and the Middle East. Key markets include Germany, France, Poland, the United Kingdom, the United States, Russia, and Southeast Asia. Customers around the globe benefit from top-tier product support and reliable service.
