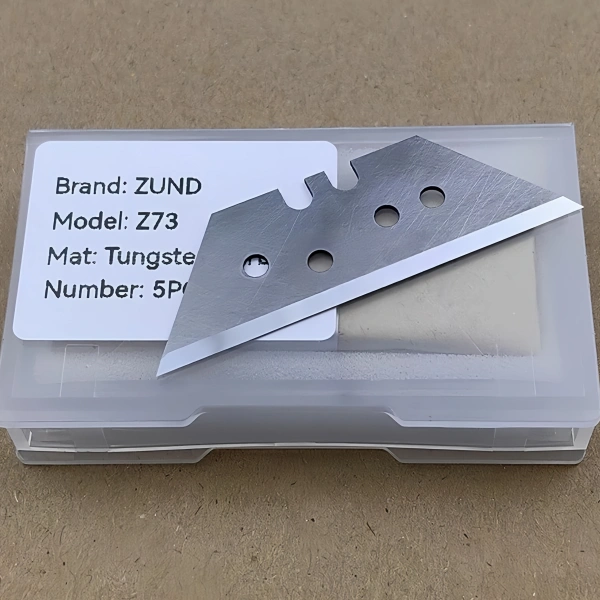

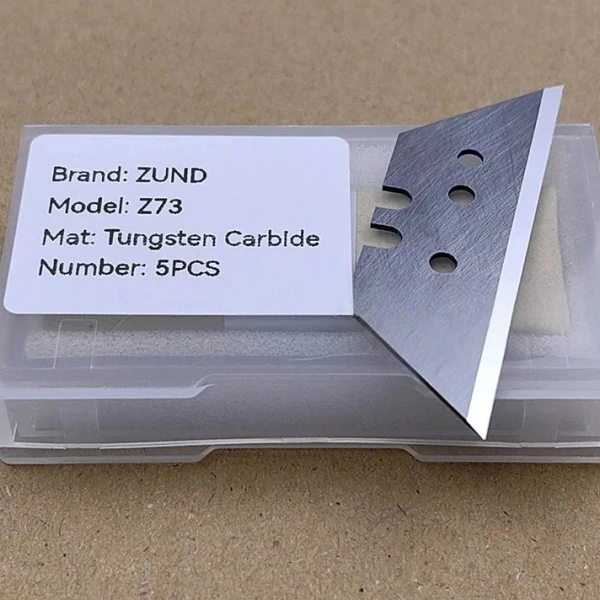

Zund Z73 Tungsten Carbide V-Cut Blade 5005572

Zund Z71 Carbide Drag V-cut Bevel knife Blade 5006045
Zund Z82 Tungsten Carbide Oscillating Knife Blade 5205519

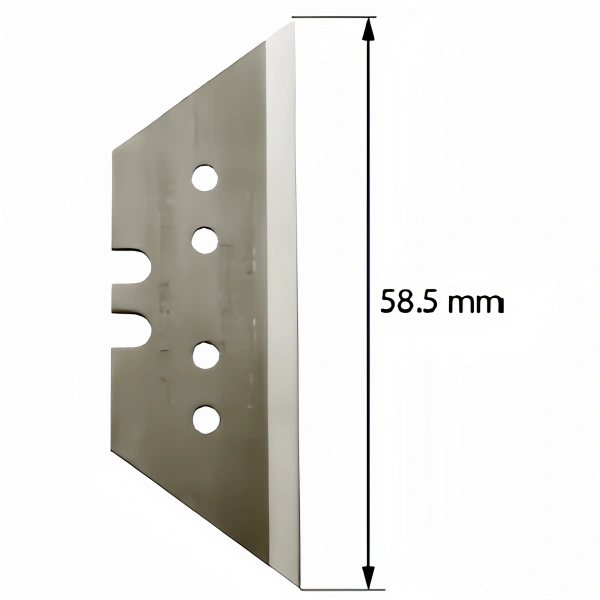

High precision V-cut blades for Zund cutting equipment. Blade height 58.5mm, width 16mm, thickness 0.9mm, maximum cutting depth 16.0 to 18.2mm. Made of tungsten carbide, durable, suitable for corrugated cardboard, corrugated plastic, soft packaging materials and foam board. Blade type is straight V-cut, installation method is 0.9mm flat mount.

Category:

Zund Z73 Tungsten Carbide knife V-cut blades 5005572

CUTTER BRAND
Humantec, Lectra MFC, Zund

KNIFE HEIGHT
58,50 mm

KNIFE WIDTH
16,00 mm

THICKNESS
0,90 mm

MAX. CUTTING DEPTH
16,00/18,2 mm

KNIFE TYPE
Flat, V-cut

MATERIALS
Corrugated cardboard, Corrugated plastic, Covering, Foam Board

KNIFE/BLADE MOUNTING
flat 0,9 mm
