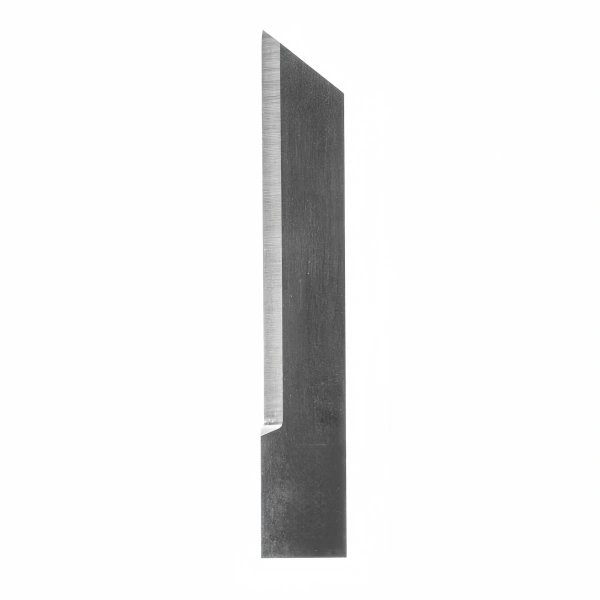

Zund Z71 Carbide Drag V-cut Bevel knife Blade 5006045

Zund Z701 Tungsten Carbide V-Cut Knife Blade (5222972)
Zund Z73 Tungsten Carbide V-Cut Blade 5005572

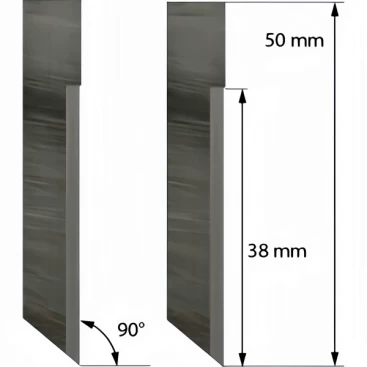

90° blade angle, blade size 50×8×1mm, maximum cutting depth 18.4mm. Suitable for Zünd, iEcho, Summa and other platform cutting machines, suitable for cutting corrugated cardboard, foam board and other materials. Compatible with V-Cut tool system, suitable for a variety of industrial cutting applications.

Category:

Zund Z71 knife V-cut blade 5006045， for use in Zünd digital cutters

CUTTER BRAND
Humantec, Lectra MFC, Zund

ANGLE
90°

KNIFE HEIGHT
50,00 mm

KNIFE WIDTH
8,00 mm

THICKNESS
1,00 mm

MAX. CUTTING DEPTH
16/18.4 mm

KNIFE TYPE
Flat, V-cut

MATERIALS
Corrugated cardboard, Corrugated plastic, Covering, Foam Board

KNIFE/BLADE MOUNTING
flat 1 mm

Suitable for machine manufacturer: XZ0071 Zünd 5006045 Z71 iEcho E71 Summa 500-9826 500-0826 Comagrav E71 Bullmer B71 Multicam K71 003612-MC71 V-Cut Knife Blade

Application:

Applied in Zund V-cut Tool (VCT) with a Zünd blade holder (VCT + Blade holder; up to 10 mm cutting depth (5206263) VCT + Blade holder; up to 16 mm cutting depth (5206264)
Summa F Series Flatbed Cutters + V-Cut Tool
