Zund Z63 5002637 Tungsten Carbide Oscillating Knife blade
Zund Z63 (model 5002637) oscillating blade, 83° angle, maximum cutting depth 28mm, suitable for Zund CNC cutting system, suitable for foam and insulation pad processing.
- Description
Zund Z63 5002637 Oscillating Knife blade Applicable to ZUND digital cutting machine
CUTTER BRAND
Humantec, Lectra MFC, Zund
ANGLE
83°
KNIFE HEIGHT
43,00 mm
KNIFE WIDTH
4,5
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
28,00 mm
KNIFE TYPE
Flat, Oscillating blade, Pointed
MATERIALS
Foam board, Insulating mat
KNIFE/BLADE MOUNTING
flat 0,63 mm
Product Description:

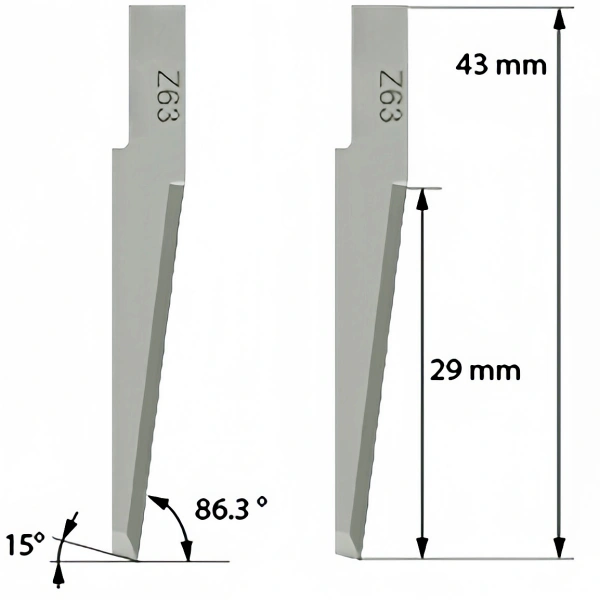

Zund Z63 5002637 Oscillating Blade is a high-precision flat, oscillating, pointed blade designed for ZUND digital cutting equipment. It is also compatible with Humantec and Lectra MFC series cutting systems. The blade angle is 83°, the blade height is 43mm, the thickness is 0.63mm, the maximum cutting depth is 28mm, and the mounting interface is flat 0.63mm to ensure stable installation and precise cutting.
Zund Z63 blade, 5002637 oscillating knife, pointed cutting knife, 83 degree oscillating knife, flat pack 0.63mm, foam cutting knife, insulation pad blade, CNC oscillating knife, Zund replacement blade, CNC tool
