Zund Z605 Tungsten Carbide Oscillating Knife Blade 5210319

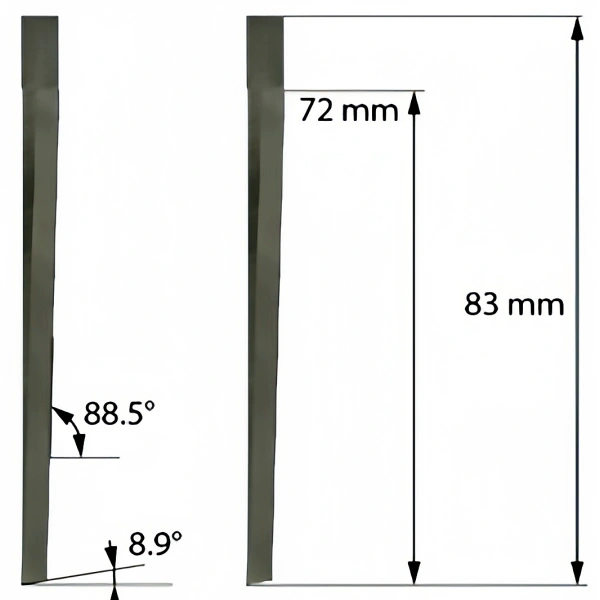

Zünd Z605 tungsten steel vibrating blade, 88.5° cutting angle, 83mm blade height, suitable for deep cutting of materials such as foam boards, maximum cutting depth of 71.5mm, dedicated to Zünd digital cutting machines.
- Description
Zund Z605 Tungsten Carbide Oscillating Knife Blade 5210319 Suitable for Zund digital cutting machine
Technical Specifications
| Item | Specification |
|---|---|
| Model | Z605 |
| Part Number | 5210319 |
| Brand | Zund Compatible |
| Material | Tungsten Carbide |
| Knife Type | Oscillating Blade |
| Mounting | Flat 1.5 mm |
| Knife Height | 83.00 mm |
| Blade Width | 5.70 mm |
| Thickness | 1.50 mm |
| Cutting Angle | 88.5° |
| Max Cutting Depth | 71.50 mm |
| Materials | Foam board |
| Replacement | Yes |
Product Overview
The Zund Z605 oscillating knife blade (5210319) is a premium tungsten carbide cutting tool engineered for important cutting requirements. Boasting an impressive cutting depth of up to 71.5mm, it is optimally suited for the precise processing of dense foam materials.
This blade is extensively employed within industrial CNC cutting systems, delivering consistent and dependable performance for strict foam cutting tasks.
Applications
This blade is ideal for cutting:
Foam board
Thick foam materials
Industrial foam products
FAQ
What is the maximum cutting depth?
The maximum cutting depth is 71.5 mm.
What materials can this blade cut?
It is designed for foam board and thick foam materials.
Is this compatible with Zund machines?
Yes, it is compatible with Zund, Lectra MFC, and Humantec systems.
What type of blade is this?
It is a flat oscillating tungsten carbide blade.
