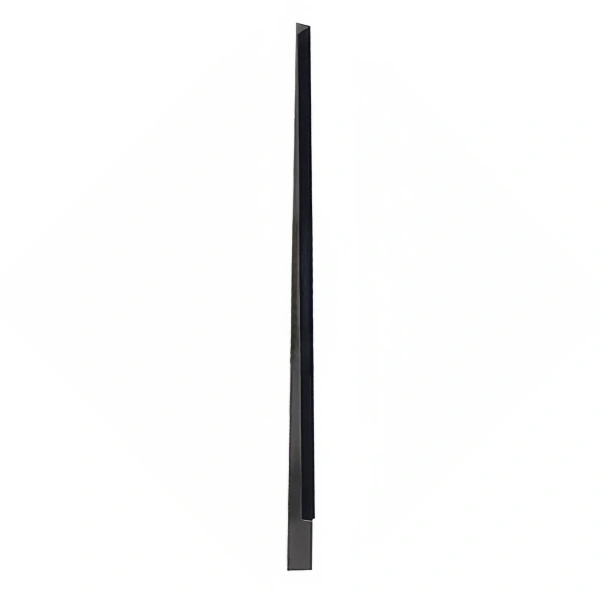

Zund Z601 Oscillating Knife Blade for Foam Board Cutting 5209223
The Zund Z601 tungsten steel vibrating blade (model 5209223) is designed for precise cutting of materials such as foam boards. Its 88.5° angle and 1.5mm thickness, combined with the flat mounting design, allow for efficient cutting while extending the blade life. The vibrating blade can effectively reduce friction and increase cutting speed, making it suitable for a variety of fine cutting needs.
- Description

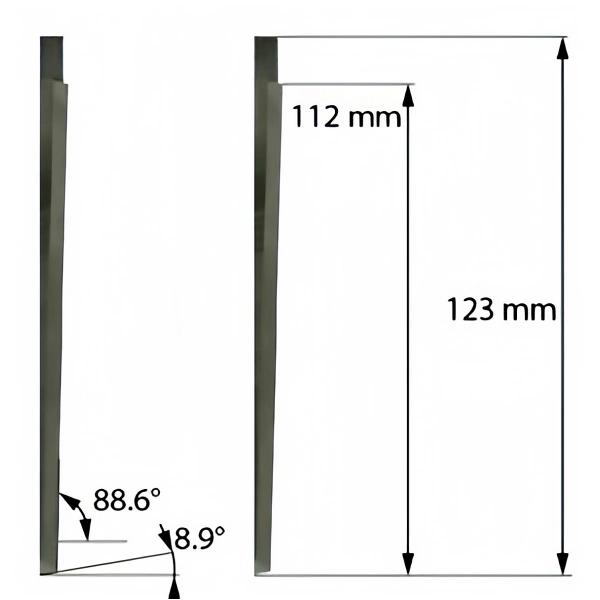

Zund Z601 Tungsten Carbide Oscillating Knife Blade 5209223
CUTTER BRAND
Zund
ANGLE
88,5°
KNIFE HEIGHT
123 mm
KNIFE WIDTH
5,70 mm
THICKNESS
1,50 mm
MAX. CUTTING DEPTH
112 mm
KNIFE/BLADE MOUNTING
flat 1,5 mm
KNIFE TYPE
Flat, Oscillating blade, Pointed
MATERIALS
Foam board
Product Overview
The Zund Z601 oscillating knife blade (Part No. 5209223) is designed for precision cutting of foam board and similar soft materials. This blade is fully compatible with Zund, Lectra MFC, and Humantec cutting systems, offering a reliable and cost-effective replacement solution.
With its flat mounting design and optimized 88.5° cutting angle, the blade ensures clean cuts and consistent performance in industrial applications.
Applications
This oscillating blade is specifically designed for cutting:
Foam board
Lightweight foam materials
Display and signage materials
Widely used in industries such as advertising, packaging, and display production.
Why Choose This Blade?
The Z601 blade is designed specifically for accurate and deep foam cutting tasks. Its advanced geometry and extended cutting depth deliver efficient material handling while ensuring superior edge durability. Compatible with multiple brands, the blade offers cost-effective procurement without compromising on performance quality.
FAQ
What machines is the Z601 blade compatible with?
It is compatible with Zund, Lectra MFC, and Humantec cutting machines.
What material is this blade designed for?
It is mainly used for foam board and soft foam materials.
What is the maximum cutting depth?
The blade supports cutting depths up to 112 mm.
Is this an original or replacement blade?
This is a high-quality compatible replacement blade.
