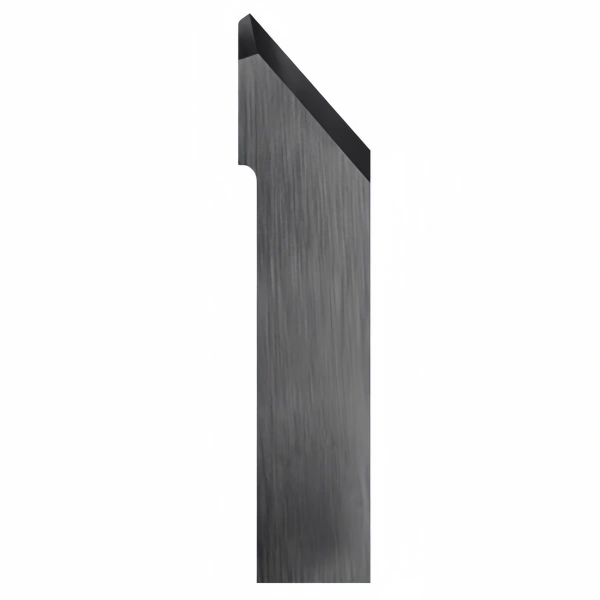

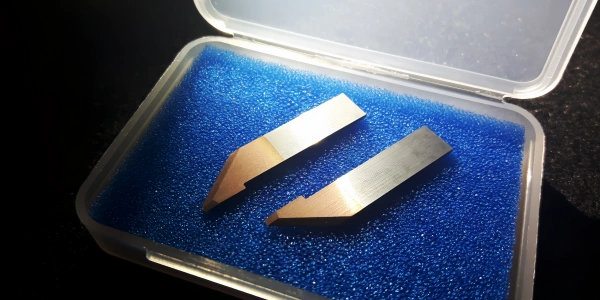

Zund Z42C Carbide Oscillating Coated Knife Blade (5203005)
Zund Z42C Tungsten Carbide Oscillating Blade (5203005) is made of high-hardness tungsten carbide and equipped with TIN coating to improve wear resistance and anti-stick performance and extend service life. The blade thickness is 0.63mm and the maximum cutting depth is 7.8mm. It is suitable for materials such as leather, fabric, carbon fiber, and glass fiber. It is compatible with Zünd, Dyss, iEcho and other brand cutting machines.
- Description
Zund Z42C Carbide Oscillating Coated Knife Blade (5203005)
Pre-cut

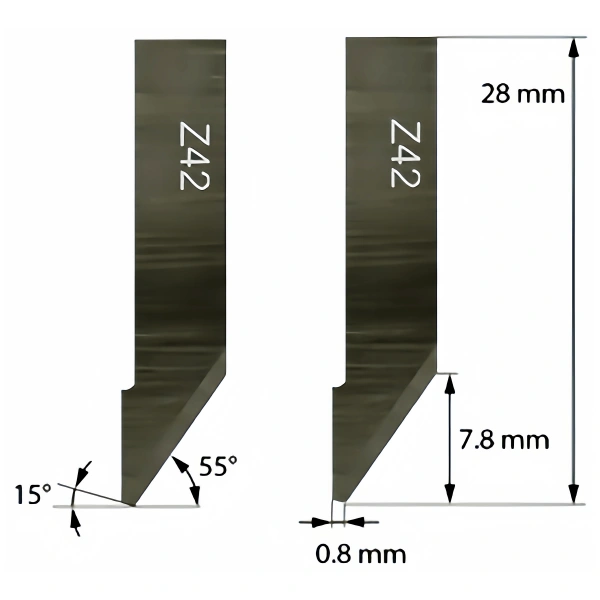

0.7 x Tm
Post-cut
0.80 mm
Max Cutting Depth mm
7.8
Knife thickness
0.63 mm
Knife Material
HM/Carbide
suitable for machine manufacturer: blade no.
Dyss: ( AGDYB420 )
echo: ( E42 )
Mécanuméric
Zünd: ( 3910324, Z42 ) , 5203005
recommended materials: Leather, Fabrics, Aramid fiber, Carbon fiber, Corrugated, Felt, Glass fiber
Special feature:
Adaptation with additional TIN coating to increase the performance. Due to the anti-stick property and improved transfer of frictional heat, the service life can be increased, with further improvement of wear and scratch resistance.
