Zund Z42 Drag blade Oscillating knife flat-stock 3910324

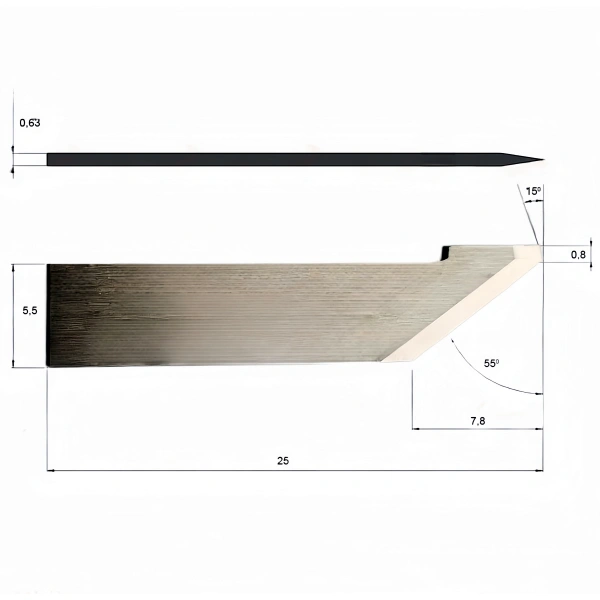

Zund Z42 blade (3910324), 15°/55° dual angle flat edge drag cutting and vibrating blade, 28mm high, suitable for Zund CNC cutting machine, suitable for cutting a variety of technical materials.
- Description

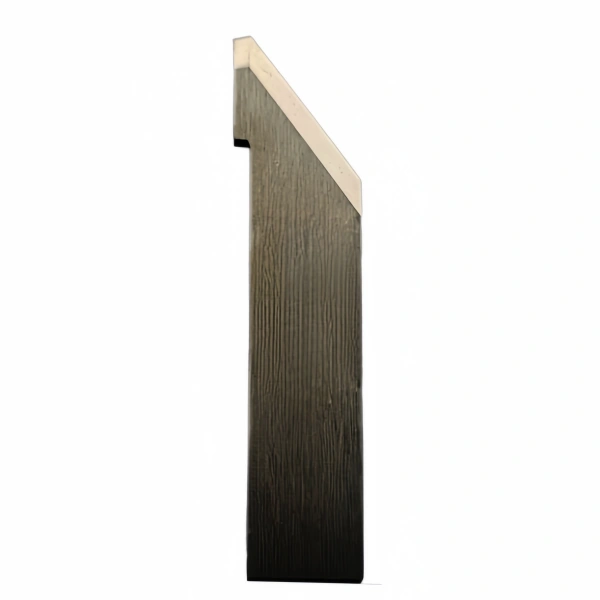

Zund Z42 Carbide Oscillating Knife Blades (3910324)
BRAND PLOTTER
Humantec, Lectra MFC, Zund
BLADE ANGLE
15°/55°
KNIFE HEIGHT
28.00mm
KNIFE WIDTH
5.50mm
KNIFE THICKNESS
0.63mm
MAXIMUM CUTTING DEPTH
7.80mm
KNIFE TYPE
Oscillating knife, flat, point
MATERIALS
Felt, Foam, Leather, Corrugated cardboard, Polyester fabrics, Aramid fibers, Carbon fibers
BLADE/KNIFE FIXING
flat 0.63 mm
Product Short Description：
Zund Z42 (3910324) is a composite flat blade with integrated drag-cut and vibration functions. It adopts a 15°/55° dual-angle cutting design, a blade height of 28mm, a thickness of 0.63mm, and a maximum cutting depth of 7.80mm. This blade is suitable for Zünd CNC cutting systems and can efficiently cut a variety of technical materials, including leather, foam, felt, carbon fiber, aramid fiber, etc.
