Zund Z31 tungsten steel passepartout blade, 60° blade angle, maximum cutting depth 5mm. Suitable for precision cutting of cardboard and picture frame cardboard, compatible with Zund CNC cutting machine, wear-resistant and durable.

Category:

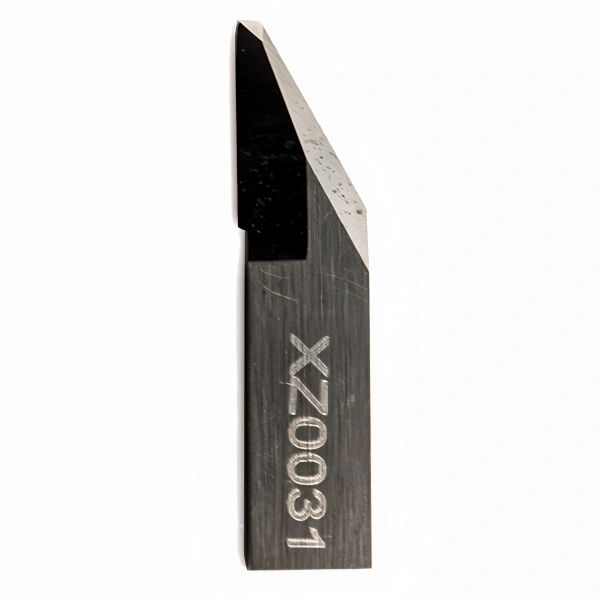

Zund Z31 Tungsten Carbide Passepartout Knife Blades (3910331)

BRAND PLOTER
Zund

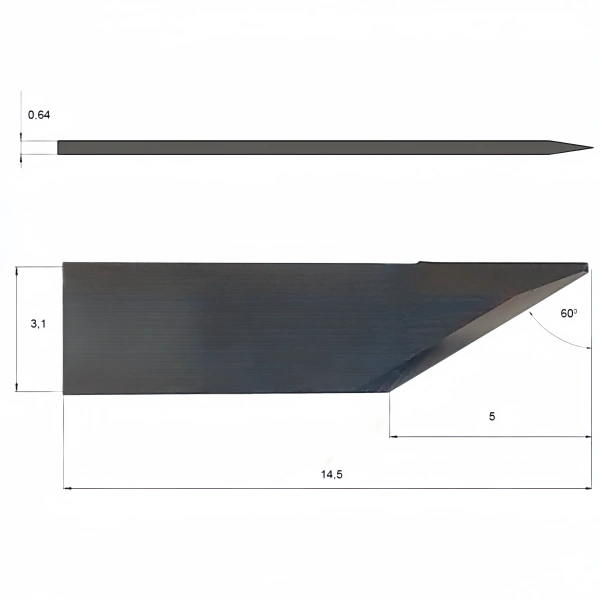

BLADE ANGLE
60°

MAXIMUM CUTTING DEPTH
5.00mm

KNIFE HEIGHT
14.50mm

KNIFE WIDTH
3.10mm

KNIFE THICKNESS
0.63mm

BLADE/KNIFE FIXING
flat 0.63 mm

KNIFE TYPE
Trailing knife, Passepartout, Flat

MATERIALS
Passepartout

Product Description：

The Zund Z31 Tungsten Carbide Passepartout Blade (3910331) is designed for high-precision cutting of cardstock, passepartout stock and premium paperboard. The blade features a 60° back edge and 0.63mm flat blade for clean, precise cuts up to 5mm deep. Measuring 14.5mm high and 3.1mm wide, the blade is compatible with Zund digital cutting systems and is ideal for mounting, signage and decorative paperboard. Tungsten carbide ensures long-lasting sharpness and durability.
