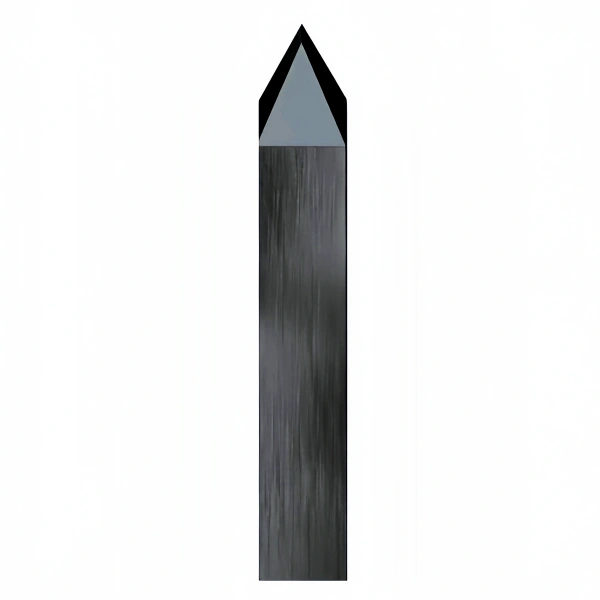

The Zund Z11 Drag Knife Blade (Model 3910309) is compatible with Zünd S3, G3, and L3 digital cutters using UCT and SCT tool heads. With a 60° angle and a maximum cutting depth of 6.9mm, this blade is ideal for precise cutting of various materials, including paper, plastic, foam, adhesive films, fabrics, and more. It is designed for drag cutting and kiss cutting, making it perfect for detailed cutting tasks such as label production and film applications.

Category:

Zund Z11 Drag Knife blade 3910309 This generic set of 2 double-edged blades is suitable for Zund S3, G3, and L3 digital cutters using UCT and SCT tool heads.

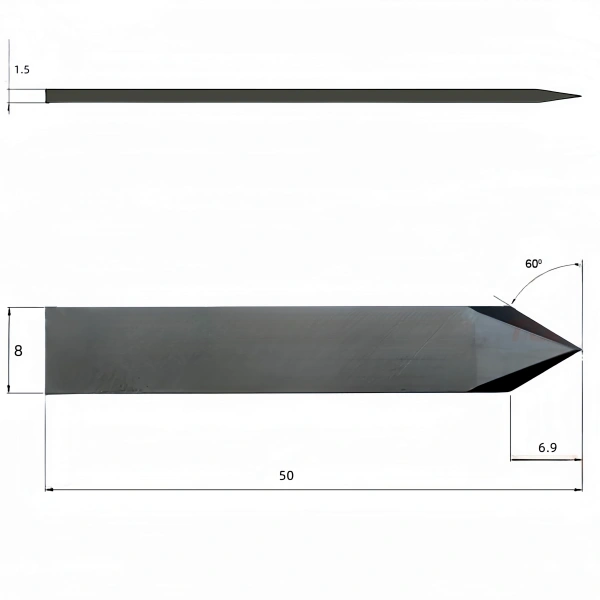

Specifications:

  • Brand: Zund (also suitable for Humantec, Lectra MFC cutters)
  • Angle: 60°
  • Knife Height: 50.00 mm
  • Knife Width: 8.00 mm
  • Thickness: 1.50 mm
  • Max. Cutting Depth: 6.90 mm
  • Knife Type: Drag blade (Flat, Kiss Cut)
  • Mounting Type: Flat 1.5 mm
  • Compatible Materials:
    • Canvas
    • Cardboard
    • Foil
    • Footwear materials
    • Gasket materials
    • Hard foam
    • Hard plastic
    • Magnetic foil
    • Paper
    • Plastic
    • Polycarbonate
    • Polyester fabric
    • PVC
    • Self-adhesive foil
    • Sole material
    • Tarpaulin

Features:

  • Drag Blade: The Z11 is a drag blade, which pulls along the material while cutting, allowing for precise cuts on various materials.
  • Kiss Cut: The blade can also perform kiss cuts, meaning it will cut through the top layer of a material (like a self-adhesive foil) without cutting through to the backing, ideal for sticker production or similar applications.

  • This versatile blade is a great choice for cutting a wide range of materials, from flexible films and foils to harder materials like plastics and foams.
