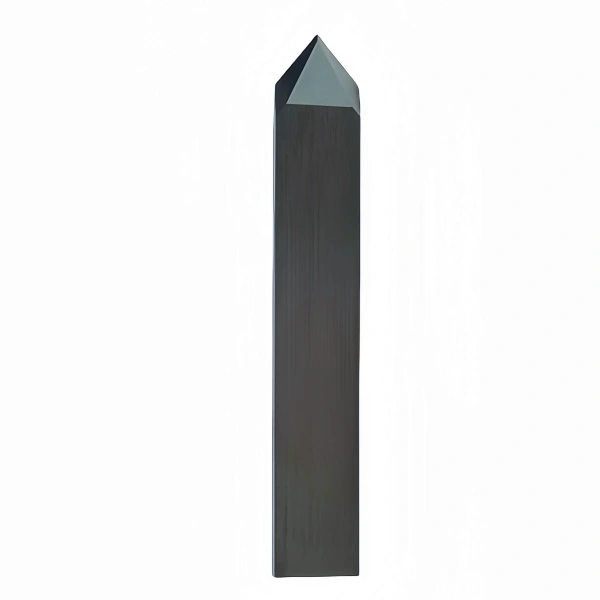

Zund Z10 Carbide double-edged drag Knife blade (3910301)

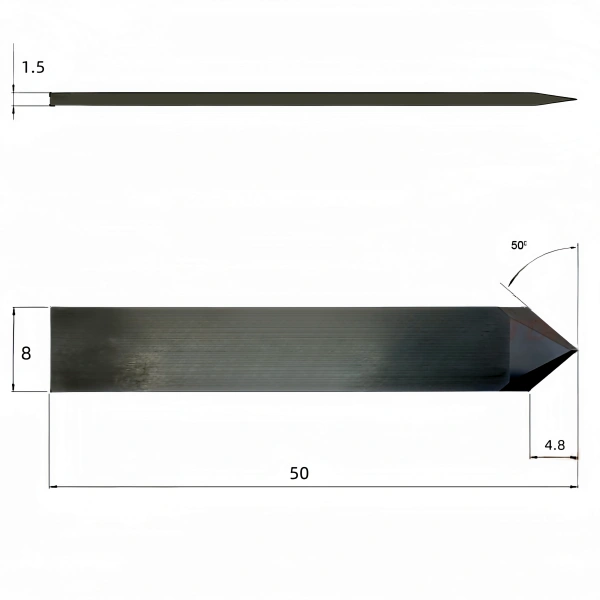

Zünd Z10 Drag Blade Compatible with Humantec, Lectra MFC and Zünd cutters, blade angle 50°, height 50 mm, width 8 mm, thickness 1.5 mm, maximum cutting depth 4.8 mm. The blade has a flat design and is suitable for light cutting of a variety of materials, such as canvas, cardboard, film, shoe materials, sealing materials, hard foam, hard plastics, etc.
- Description
Zund Z10 Carbide double-edged drag Knife Blade (3910301)
CUTTER BRAND
Humantec, Lectra MFC, Zund
ANGLE
50°
KNIFE HEIGHT
50,00 mm
KNIFE WIDTH
8,00 mm
THICKNESS
1,50 mm
MAX. CUTTING DEPTH
4,80 mm
KNIFE TYPE
Drag blade, Flat, Kiss Cut
MATERIALS
Canvas, Cardboard, Foil, Footwear materials, Gasket materials, Hard foam, Hard plastic, Magnetic foil, Paper, Plastic, Polycarbonate, Polyester fabric, PVC, Self-adhesive foil, Sole material, Tarpaulin
KNIFE/BLADE MOUNTING
flat 1,5 mm
