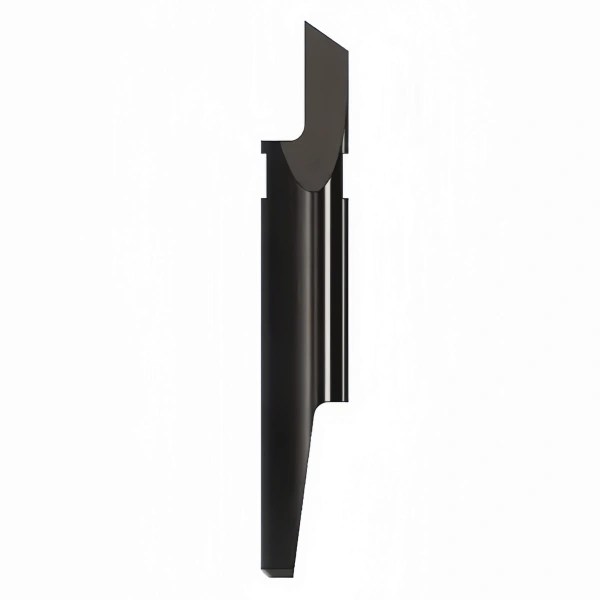

Zund Z1 Tungsten Carbide Drag Knife Blade, Round-Stock 3910105
Zund Z1 tungsten steel drag circular blade (3910105) is designed for Zund cutters and is also compatible with Humantec and Lectra MFC cutters. The blade angle is 35°, the blade height is 18.5mm, the thickness is 3.0mm, the width is 3.0mm, and the maximum cutting depth is 1.0mm. It is suitable for kiss cutting of materials such as folding cartons, magnetic films, masking films and polycarbonate. The tungsten steel material ensures that the blade remains sharp for a long time and provides precise cutting results.
- Description
Zund Z1 Tungsten Carbide Drag Round-Stock Knife Blade (3910105) Suitable for Zund cutting machines
CUTTER BRAND
Humantec, Lectra MFC, Zund
ANGLE
35°
KNIFE HEIGHT
18,50 mm
THICKNESS
3,00 mm
WIDTH
3,00 m
MAX. CUTTING DEPTH
1,00 mm
KNIFE TYPE
Drag blade, Kiss Cut
MATERIALS
Folding Carton, Magnetic foil, Masking film, Polycarbonate
