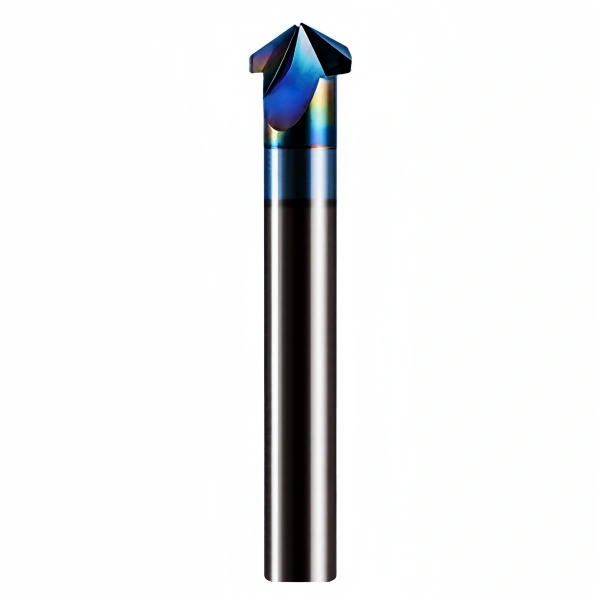

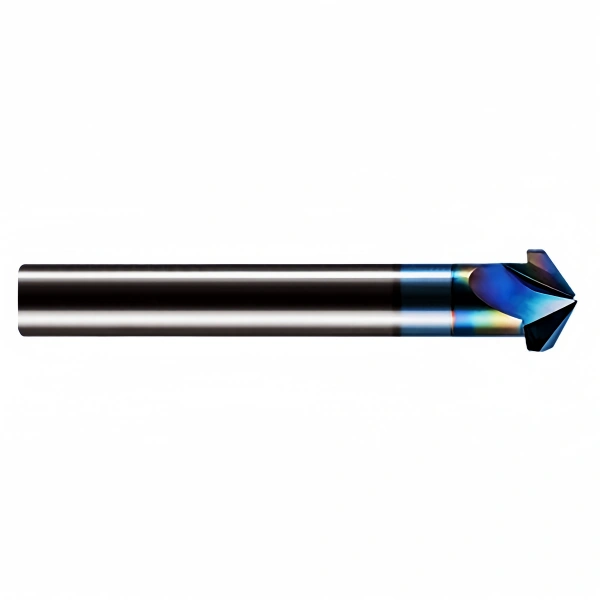

Zund R602 V-shape coated Router bit Ø11/2.9/2 (Ø8/55mm)
The Zund R602 milling cutter features a V-shaped design with a cutting width of 2.9 mm and an angle of 120°, making it ideal for ACM (aluminum composite) applications. Its 8 mm shank ensures a stable fit, while the coated surface increases durability. Capable of running at speeds up to 50,000 RPM and a maximum milling depth of 2.9 mm, this drill is designed for clean, accurate grooves. It features two cutting edges and a right-hand helix.
- Description
Zund R602 V-shape coated Router bit Ø11/2.9/2 (Ø8/55mm)
Specifications
Properties
V-groove router 2.9×120°, coated
Recommended materials
ACM
Tools
RM-L
Diameter of shank
8 mm
Max. rotations speed (1/min)
50000
Max. routing depth
2.9 mm
Number of cutting edges
2
Routing diameter
11 mm
Supported by ZCC
1
Twist
right-hand twist
