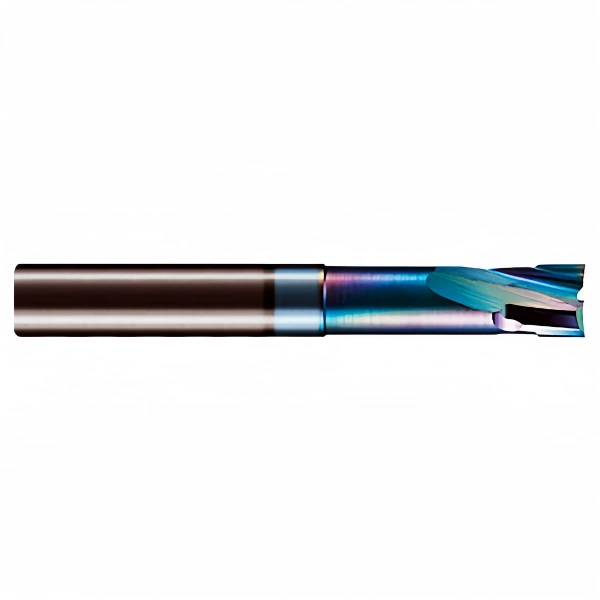

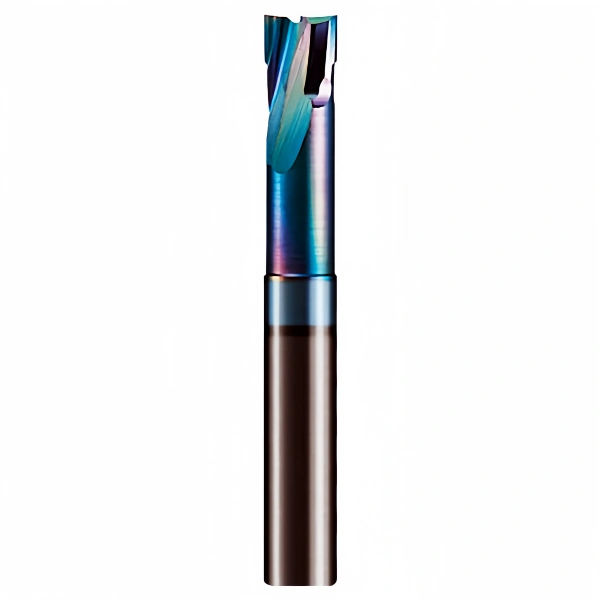

Zund R601 Coated Router Bits (5224647) Ø8/4.5/2 (Ø8/55mm)
The Zund R601 coated routing tool is a high-performance coated tool designed for processing materials such as aluminum, expanded PVC, foamed PE, foamed PUR, hard paper, plastics (PA 6.6, PC, PE, PET, PETG, PMMA) and wood (MDF, XPS). Its 8 mm engraving diameter and 8 mm shank diameter provide stable cutting results and are suitable for speeds up to 50,000 RPM. The tool has 2 cutting edges and a right-hand thread, and a maximum cutting depth of 4.5 mm makes it an excellent performer in a variety of applications. Compatible with RM-L tools
- Description
Zund R601 Coated Router Bits Ø8/4.5/2 (Ø8/55mm) (5224647)
Specifications
Properties
high performance coated router bit
Recommended materials
ACMAluminum alloyCorrugated plastic – PPExpanded PVCFoam – PEFoam – PURHard paperPlastic – PA 6.6Plastic – PCPlastic – PEPlastic – PETPlastic – PETGPlastic – PMMA (Acryl)Plastic – PPWood – MDFXPS
Tools
RM-L
Diameter of shank
8 mm
Max. rotations speed (1/min)
50000
Max. routing depth
4.5 mm
Number of cutting edges
2
Routing diameter
8 mm
Twist
right-hand twist
