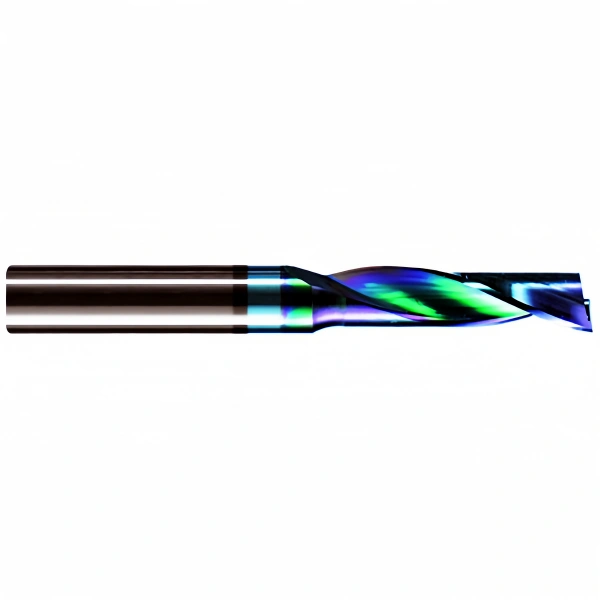

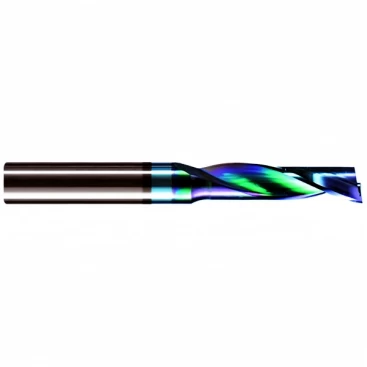

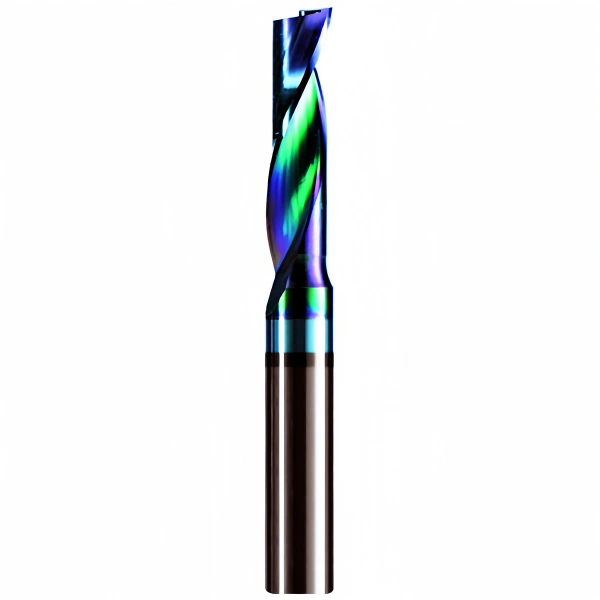

Zund R506 Carbide Coated Milling & Router Bits 5218141
Zund R506 Carbide Coated Milling and Router Drill Bit. Designed to be versatile, this drill bit excels at routing materials such as plastics, wood, and composites. It features a 6mm shank and can easily handle speeds up to 50,000 RPM, providing a maximum routing depth of 22mm. It features a single cutting edge and right-hand rotation to ensure a clean, efficient cut every time. The Zund R506 is suitable for a variety of applications and is compatible with a wide range of tools
- Description
Zund R506 Carbide Coated Milling & Router Bits 5218141
Specifications
Properties
Coated multipurpose router bit
Recommended materials
ACMAluminum alloyCorrugated plastic – PPExpanded PVCFoam – PEFoam – PURHard paperPlastic – PA 6.6Plastic – PCPlastic – PEPlastic – PETPlastic – PETGPlastic – PMMA (Acryl)Plastic – PPWood – MDFWood – MPXWood – PlywoodXPS
Tools
R45-sRM-ARM-A QCRM-LRM-S
Diameter of shank
6 mm
Max. rotations speed (1/min)
50000
Max. routing depth
22 mm
Number of cutting edges
1
Routing diameter
6 mm
Twist
right-hand twist
