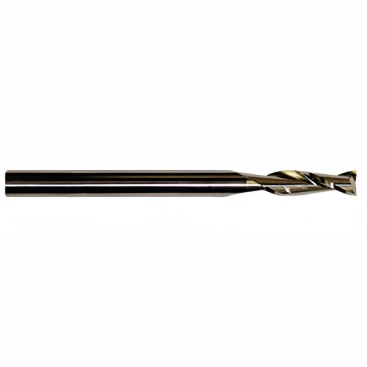

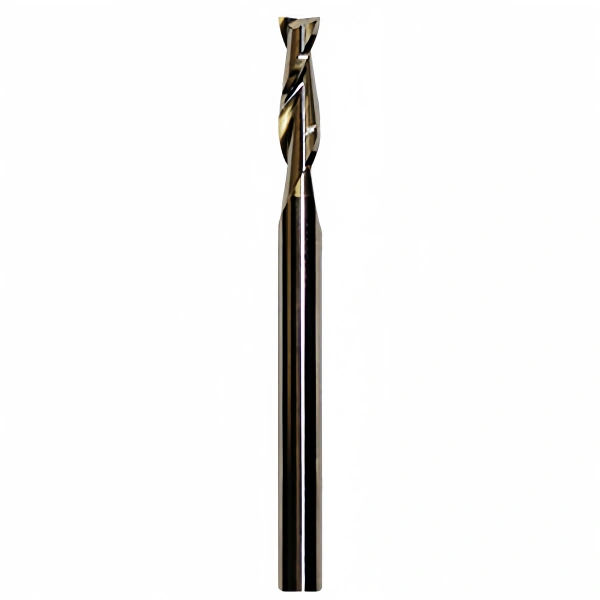

Zund R24 Carbide Up-Cut Milling Bits & End Mills (3910704)
The Zund R24 Carbide Upcut Milling Cutter (3910704) is designed for aluminum and PMMA (acrylic) materials and is suitable for PN 150/450 W tools. The tool has a 1/8″ shank diameter, a maximum speed of 80,000 RPM, a maximum milling depth of 10 mm, 2 cutting edges, a routing diameter of 3 mm, and a right-hand helical design to ensure efficient cutting.
- Description
Zund R24 Carbide Up-Cut Milling Bits & End Mills (3910704)
Specifications
Recommended materials
Aluminum alloy
Plastic – PMMA (Acryl)
Tools
PN 150/450 W
Diameter of shank
1/8 in
Max. rotations speed (1/min)
80000
Max. routing depth
10 mm
Number of cutting edges
2
Routing diameter
3 mm
Twist
right-hand twist
