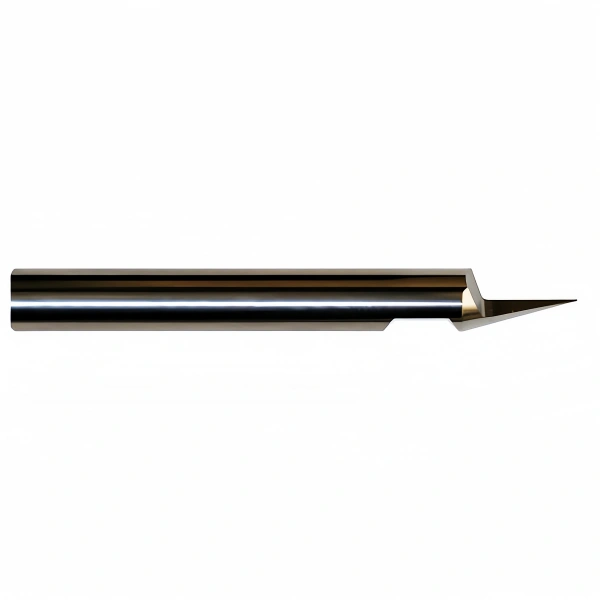

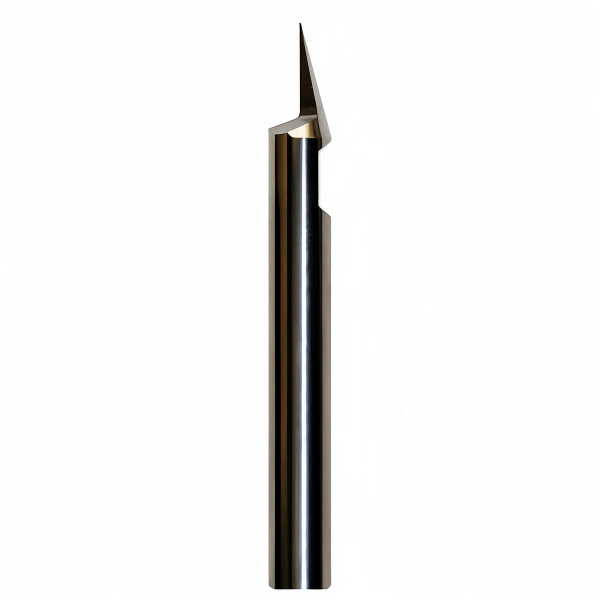

Zund E8 Engraving bit , (3910508) Ø6/40°/1 (Ø6/50mm)
The Zund E8 Engraving Tool (Part No. 3910508) is the tool of choice for high-precision engraving on a wide range of materials including aluminum, expanded PVC, foamed PE, foamed PUR, cardboard, plastics (PA 6.6, PC, PE, PET, PETG, PMMA, PP) and wood (MDF, MPX, Plywood, XPS). With a 6 mm engraving diameter and a 40° angle, the tool has 1 cutting edge and can operate at speeds up to 50,000 RPM. Its maximum cutting depth of 7.5 mm makes it an excellent choice for a wide range of engraving tasks. Compatible with RM-A, RM-A QC, RM-L and RM-S tools
- Description
Zund E8 Engraving bit , (3910508) Ø6/40°/1 (Ø6/50mm)
Specifications
Recommended materials
ACMAluminum alloyExpanded PVCFoam – PEFoam – PURHard paperPlastic – PA 6.6Plastic – PCPlastic – PEPlastic – PETPlastic – PETGPlastic – PMMA (Acryl)Plastic – PPWood – MDFWood – MPXWood – PlywoodXPS
Tools
RM-ARM-A QCRM-LRM-S
Angle
40°
Diameter of shank
6 mm
Engraving diameter
6 mm
Max. rotations speed (1/min)
50000
Max. routing depth
7.5 mm
Number of cutting edges
1
