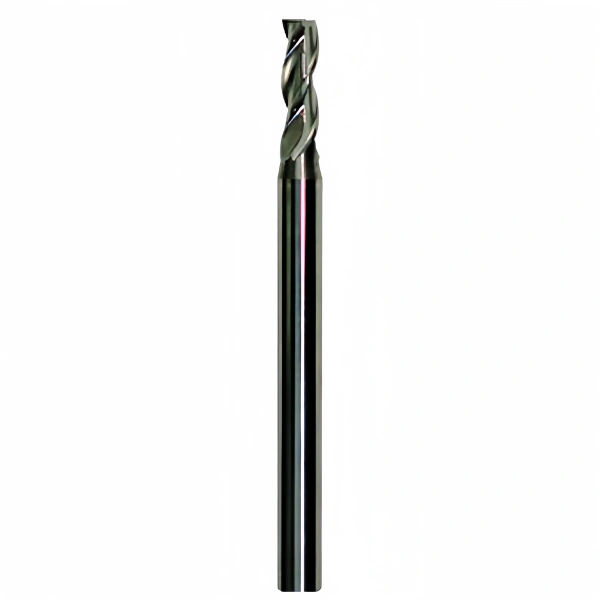

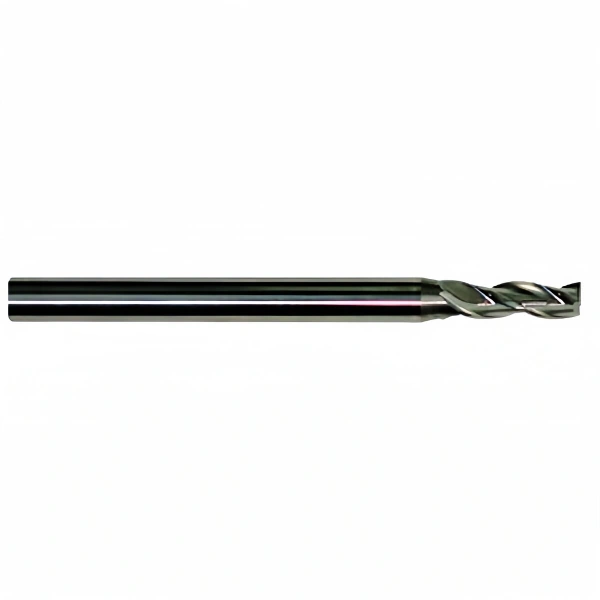

Zund Carbide Milling & Router Bits R35 (3910425)

Zund article number: 3910425 (R35).Spiral cutter for the Zund cutting plotter system for machining brass.

Zund Carbide Milling & Router Bits R35 (3910425)

Specifications

Recommended materials

Brass

Tools

PN 150/450 W
URT

Diameter of shank

3 mm

Max. rotations speed (1/min)

80000

Max. routing depth

7 mm

Number of cutting edges

3

Routing diameter

2.5 mm

Twist

right-hand twist
