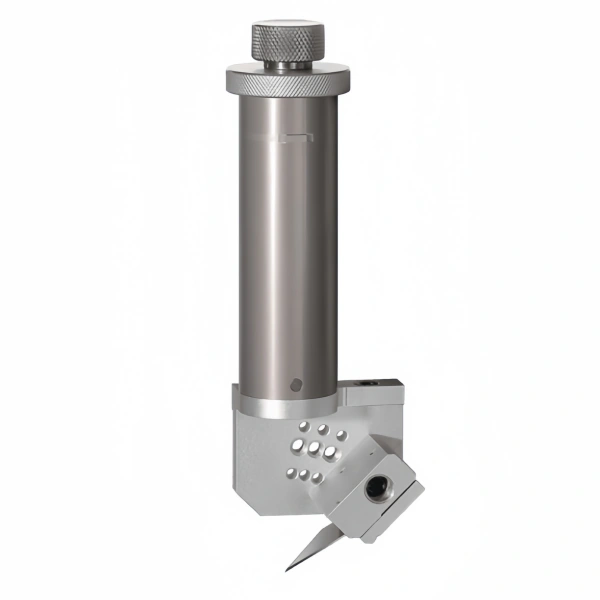

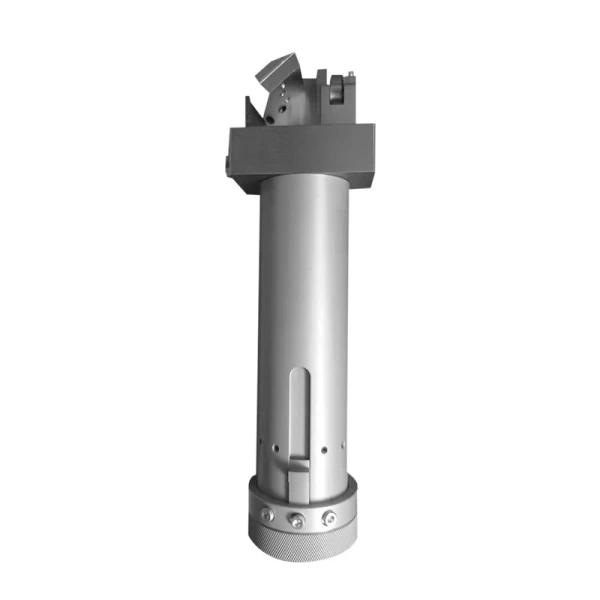

V-Cut Tool (VCT) for Flatbed Digital Cutting System

Flatbed Digital Cutting System V-Cut Tool (VCT)

Product Overview：

The V-Cut Tool (VCT) is a specialized cutting solution crafted for flatbed digital cutting systems, tailored to deliver precise bevel cuts and V-grooves. This tool is engineered to streamline the creation of high-quality 3D structural designs, making it indispensable for applications in display production, packaging, and structural modeling.

Capable of cutting materials up to 25 mm thick with multiple preset angle options, the VCT ensures clean, sharp edges and flawlessly aligned folds, resulting in professional-grade assembly outcomes.

Cutting Capability & Performance：

The V-Cut Tool enables the creation of precise V-grooves and beveled edges, ensuring flawless folding and smooth assembly without compromising material integrity. It enhances workflow efficiency while guaranteeing consistent cutting precision.

Designed for industrial applications, the tool features an easy blade replacement system, reducing downtime and boosting overall productivity.

Available Cutting Angles：

The V-Cut Tool (VCT) supports eight adjustable cutting angles:

Cuts material in eight different angles (0°, 5°, 7.5°, 10°, 15°, 22.5°, 30°, 45°)

These angle options provide maximum flexibility for complex structural and creative designs.

Compatible Materials

The VCT is suitable for processing a wide range of rigid and semi-rigid materials, including:

• Cardboard

• Foam-core board

• Corrugated board

• Honeycomb display board

• Display and packaging materials

Typical Applications：

POP & POS display production

Exhibition and display structures

Packaging prototypes

3D foam-core constructions

Structural design and modeling

Why Choose Our V-Cut Tool

Accurate and repeatable V-groove cutting

Clean bevel edges for perfect folding

Ideal for thick materials and structural boards

High efficiency for industrial production

Reliable performance for professional display manufacturing
