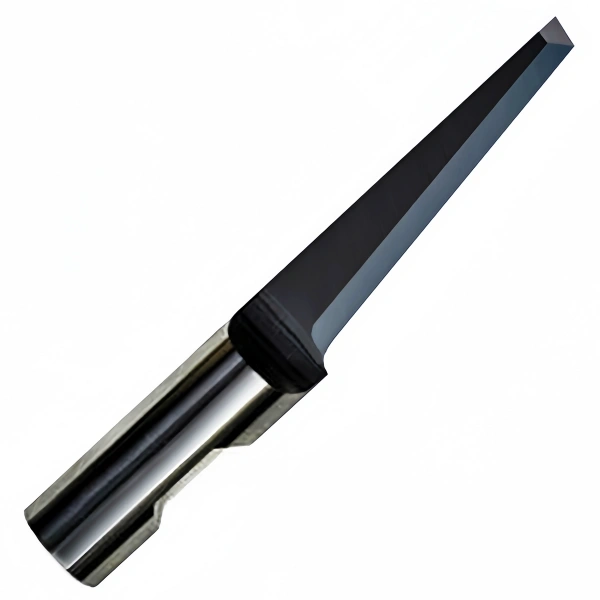

SUMMA 500-9830 500-0830 Carbide Flat Point Knife Blade

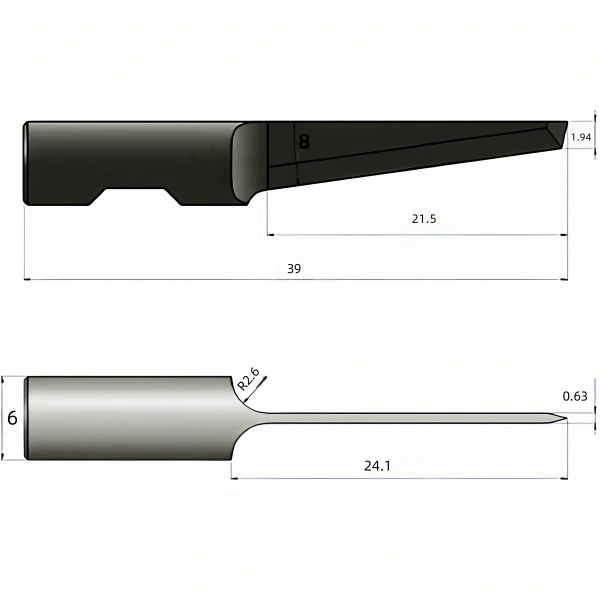

SUMMA 500-9830 500-0830 Rigid flat blade, recommended materials: aramid fiber, canvas, carbon fiber, cardboard, corrugated board, foam board, folding carton, honeycomb board, magnetic film, polyester fabric, PVC, reflective film, rubber and textiles. The blade angle is 82°, the height is 39.00 mm, the maximum cutting depth can reach 20.00 mm, and the oscillating knife and Weldon design ensure precise cutting. The blade is mounted in a round Ø 6 mm and is compatible with multiple brands of cutting machines, including Summa, Multicam and AXYZ, suitable for various professional cutting needs.
- Description
SUMMA 500-9830 500-0830 L20 T0.63 POT Flat Point Knife Blade
CUTTER BRAND
Summa
ANGLE
82°
KNIFE HEIGHT
39,00 mm
MAX. CUTTING DEPTH
20,00 mm
MATERIALS
Aramid fibers, Canvas, Carbon fibers, Cardboard, Corrugated cardboard, Foam board, Folding Carton, Honeycomb, Magnetic foil, Polyester fabric, PVC, Reflective foil, Rubber, Textiles
KNIFE TYPE
Oscillating blade, Weldon
KNIFE/BLADE MOUNTING
round Ø 6 mm
