Summa-500-9815-blades
Summa-500-9815-blade

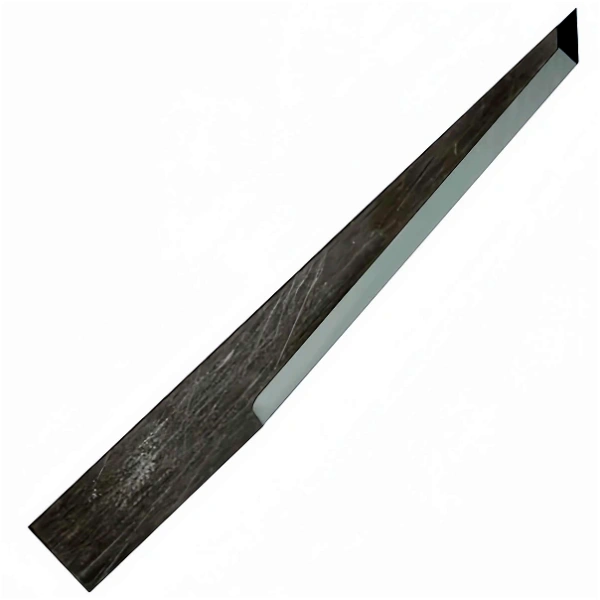

Summa 500-9815 500-0815 F-Series Oscillating Knife Blade

Summa 500-9814 500-0814 F-Series Oscillating Knife Blade
SUMMA 500-9825 Tungsten Carbide V-Cut Knife Blades

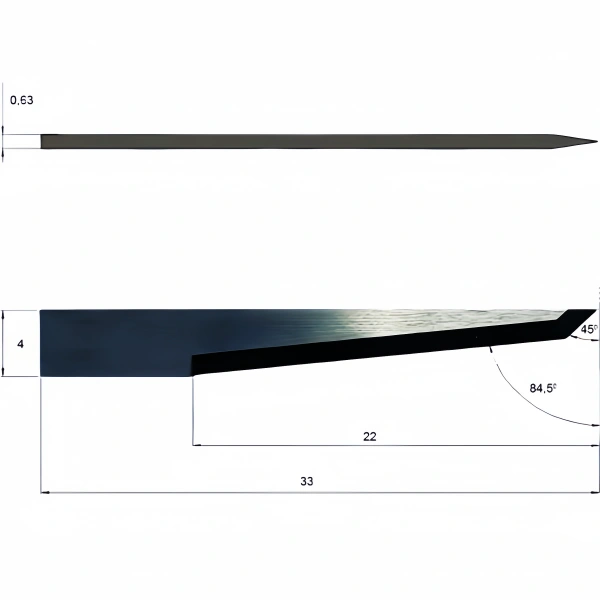

Compatible with Summa automated cutting machine’s oscillating cutter. With a 45°/84.5° angle and 30.00 mm blade height, the blade is suitable for cutting materials such as corrugated cardboard, corrugated plastic, foam board, folding carton and rubber. With a blade thickness of 0.63 mm and a maximum cutting depth of up to 22.00 mm, it provides a precise and efficient cutting experience. Compatible with multiple cutting systems

Category:

Summa 500-9815 500-0815 F-Series Oscillating Knife Blade compatible for Summa automated cutting machine

CUTTER BRAND
Summa

ANGLE
45°/84,5°

KNIFE HEIGHT
30,00 mm

THICKNESS
0,63 mm

MAX. CUTTING DEPTH
22,00 mm

KNIFE TYPE
Flat, Oscillating blade, Pointed

MATERIALS
Corrugated cardboard, Corrugated plastic, Foam board, Folding Carton, Rubber

KNIFE/BLADE MOUNTING
flat 0,63 mm

Equivalent to:XZ0023 BT-2323 iEcho E23 Summa 500-0815 500-9815 Zünd 5005560 Z23 Blackman & White BW23 Colex T00423 ESKO KONGSBERG BLD-SF428
