Pneumatic Oscillating Tangential Knife Tool (POT) for Digital Cutting Systems
Pneumatic-driven oscillating tangential knife tool
Extremely high stroke frequency (up to 14,000 cuts/min)
Ideal for detailed contours and complex shapes
High cutting speeds improve productivity and reduce costs
Supports 6–7 mm wide blades
Variable blade clamper for multiple blade thicknesses: 0.6 mm，1.0 mm，1.2 mm，1.5 mm
Designed for professional digital cutting systems
- Description

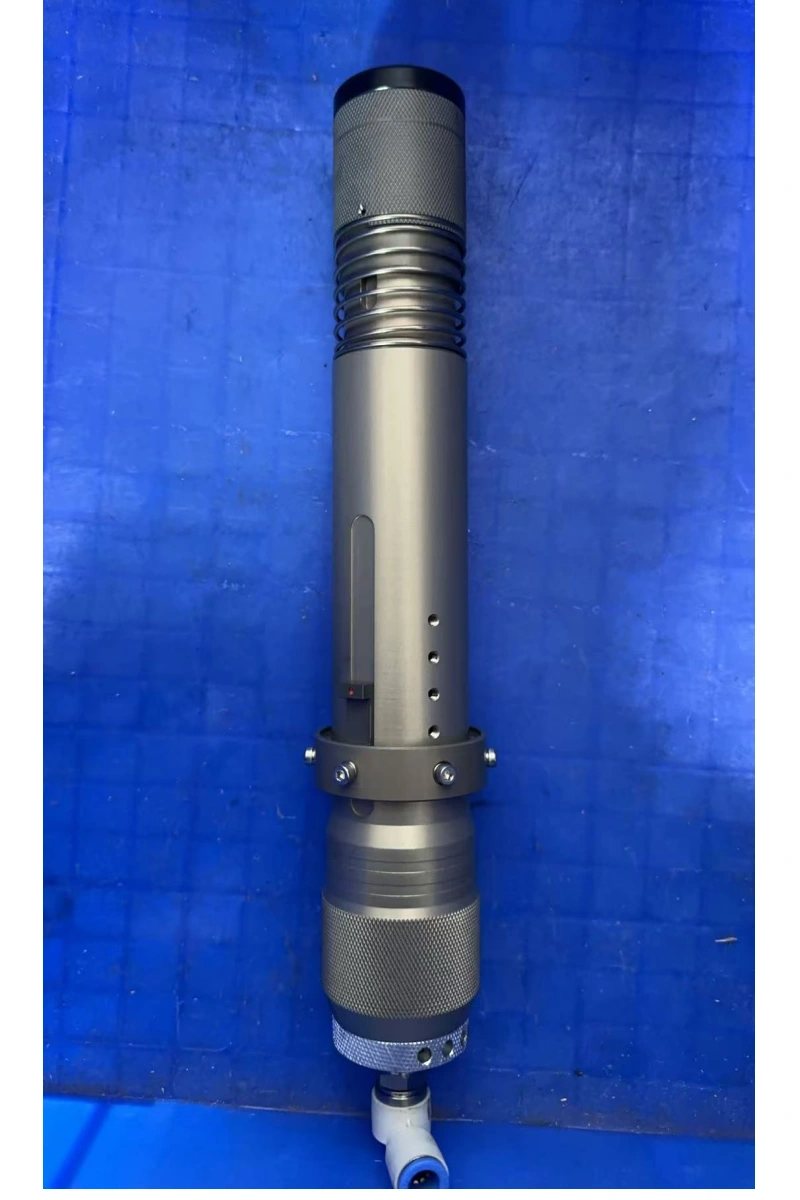

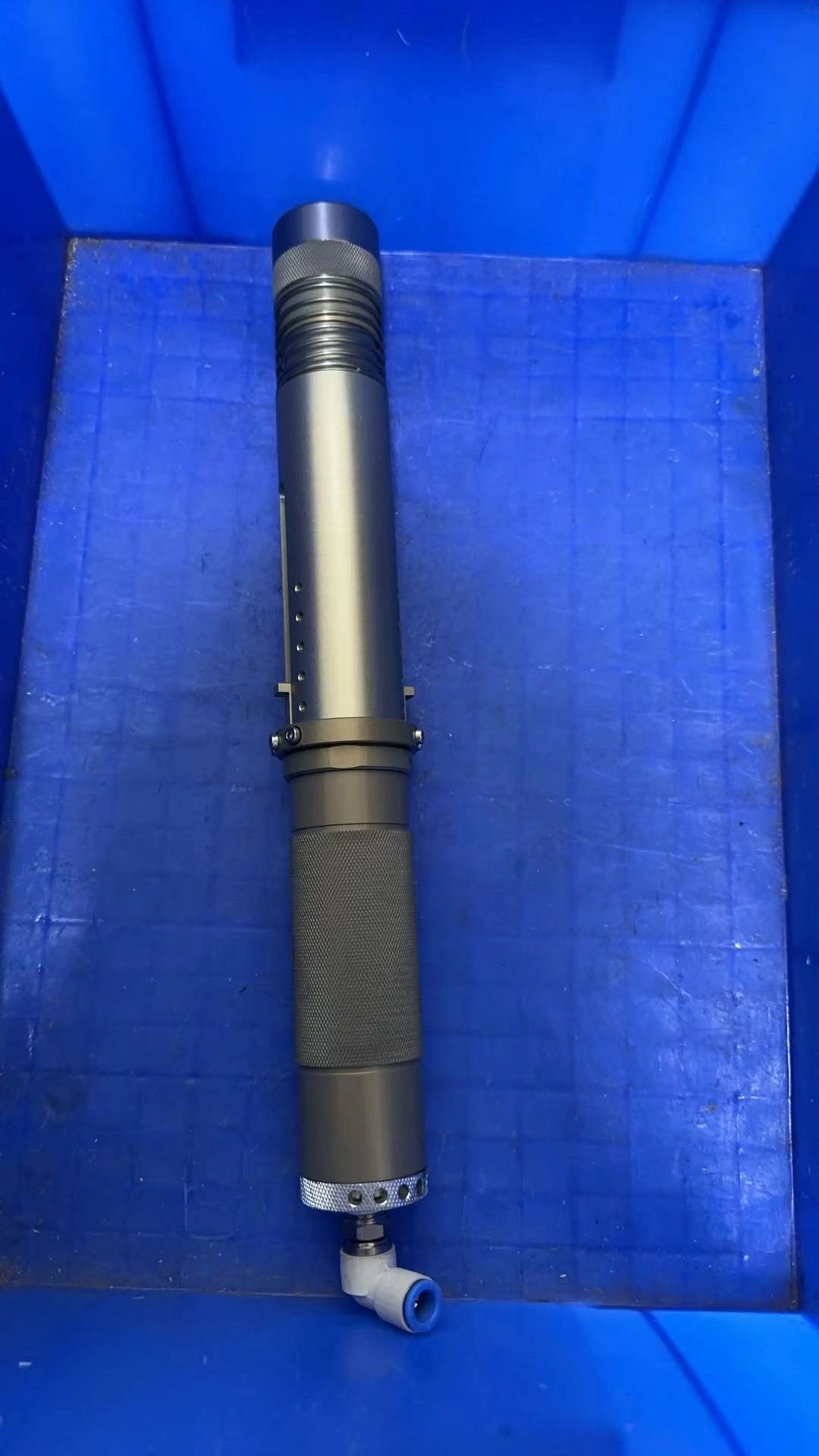

Digital Cutting Systems Pneumatic Oscillating Tool (POT)
Product Overview：
The Pneumatic Oscillating Tool (POT) is a robust and efficient tangential knife tool specifically developed for flatbed digital cutting machines. Operating with compressed air, it achieves rapid up-and-down blade movement, ensuring exceptional cutting power and precision.
This pneumatic system is particularly well-suited for handling high-hardness materials, thick substrates, and multi-layer flexible materials, offering a reliable solution where traditional cutting tools often face challenges.
Cutting Technology & Performance：
Powered by air pressure, the POT delivers an impressive stroke frequency of up to 14,000 cuts per minute, ensuring exceptionally fast cutting speeds while maintaining precise control along intricate contours.
Its tangential knife design enables the blade to automatically adjust its cutting direction, delivering clean edges and precise shapes, even on the most complex patterns. This makes the POT an ideal solution for industrial users demanding both speed and accuracy.
Compatible Materials：
The Pneumatic Oscillating Tool (POT) is suitable for cutting a wide range of materials, including:
Cloth & textiles
Imitation leather
Genuine leather
PVC
Sponge
Other flexible and semi-rigid materials
Typical Applications：
Apparel and textile manufacturing
Leather goods and footwear production
Automotive interiors
Advertising and display materials
Industrial and mass-production cutting environments
Tool Holder Notice
If you require a tool holder for the Pneumatic Oscillating Tool (POT),
👉 please contact our sales manager for compatibility and configuration options.
Why Choose the POT：
Exceptional cutting power for thick and hard materials
Ultra-high oscillation speed for maximum efficiency
Precise contour cutting with tangential control
Flexible blade compatibility for various applications
Reliable pneumatic solution for industrial digital cutting
