Multicam-94-02466-910-309-S_

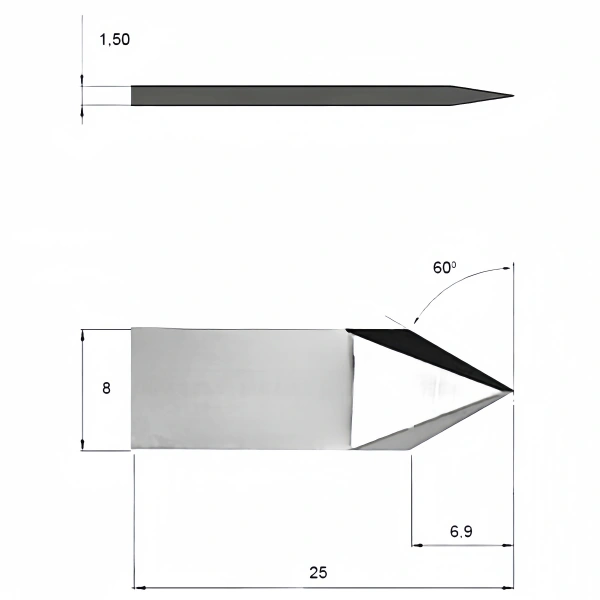

500-9803-schemat-2

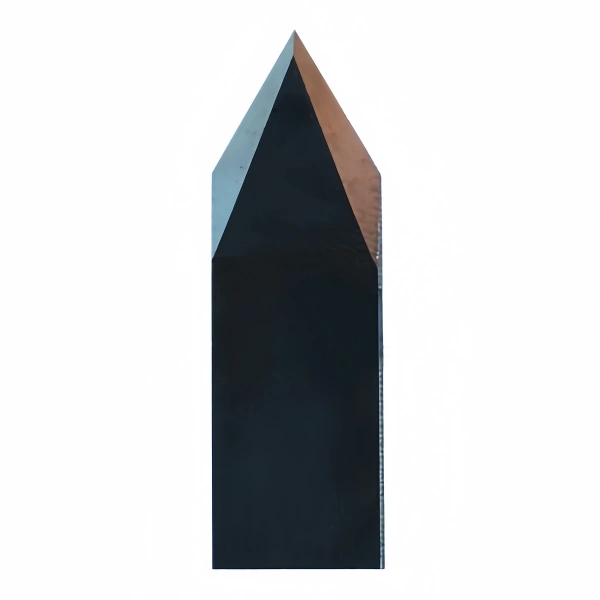

Multicam 94-02466-910.309-S knife Blades (Multicam BT-23080)

MultiCam 94-02466-910.301-S Carbide Tangencial Knife Blade
Multicam XZ0016 Replacement Blade 94-02466-910.306-L Oscillating Knife

The Multicam 94-02466-910.309-S blade is designed for Multicam automatic cutting machines. It uses a flat vibrating blade with a 60° angle and is suitable for materials such as cardboard, corrugated board, folding carton, magnetic film, polypropylene, polycarbonate, PVC and vinyl. The blade height is 25mm, the width is 8mm, and the maximum cutting depth is 6.5mm, ensuring efficient and precise cutting results. It is widely used in industrial automatic cutting.

Category:

Multicam 94-02466-910.309-S Knife Blades (Multicam BT-23080) Compatible with Multicam automatic cutting machines

CUTTER BRAND
Multicam

ANGLE
60°

KNIFE HEIGHT
25,00 mm

KNIFE WIDTH
8,00 mm

THICKNESS
1,50 mm

MAX. CUTTING DEPTH
6,50 mm

KNIFE TYPE
Drag blade, Flat

MATERIALS
Cardboard, Corrugated cardboard, Folding Cartons, Magnetic foil, Polypropylene, Polycarbonate, PVC, Vinyls

KNIFE/BLADE MOUNTING
flat 1,5 mm

Replacement for:Jwei J353 Esko Kongsberg G42443036 42443036 BLD-DF113 i-309 Summa 500-0803 500-9803 Colex T00313 Blackman & White BW113 MultiCam 94-02466-910.309-S Zünd Z11 in 25 mm AXYZ BT1051L-7 Gerber MCT DE13 895013
