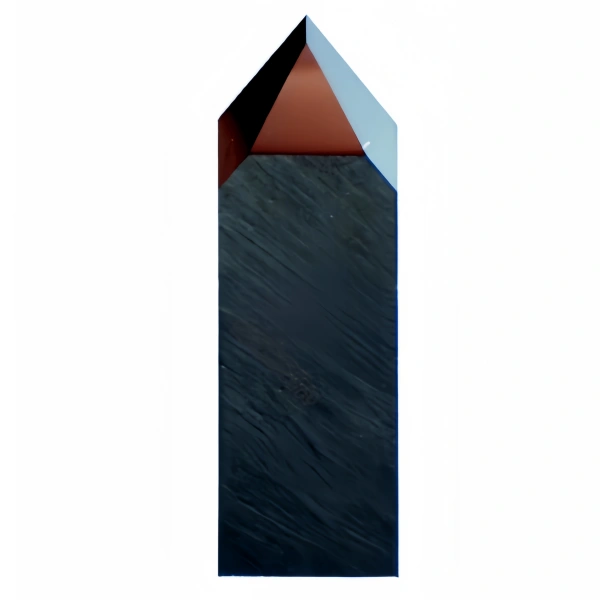

MultiCam 94-02466-910.301-S Carbide Tangencial Knife Blade

Multicam Serrated Oscillating Knife Blades 95-00118-01
Multicam 94-02466-910.309-S knife Blades (Multicam BT-23080)

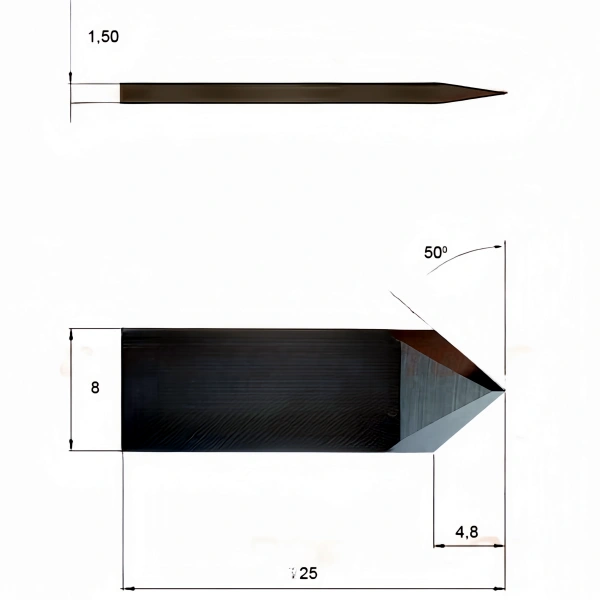

The MultiCam 94-02466-910.301-S tungsten carbide blade is designed for efficient cutting of a wide range of materials including canvas, folding cartons, gasket material, magnetic film, paper, polyester fabric, PVC, reflective vinyl and self-adhesive vinyl. The blade has a 50° angle, 25.00 mm height, 8.00 mm width, 1.50 mm thickness and a maximum cutting depth of 4.50 mm. Its flat blade design and 1.5 mm mounting ensures precise cutting and is suitable as a replacement blade for many brands of cutting machines.

Category:

MultiCam 94-02466-910.301-S Carbide Tangential Knife Blade

CUTTER BRAND
Multicam

ANGLE
50°

KNIFE HEIGHT
25,00 mm

KNIFE WIDTH
8,00 mm

THICKNESS
1,50 mm

MAX. CUTTING DEPTH
4,50 mm

KNIFE TYPE
Drag blade, Flat

MATERIALS
Canvas, Folding Carton, Gasket materials, Magnetic foil, Paper, Polyester fabric, PVC, Reflective vinyl film, Self-adhesive vinyl film

KNIFE/BLADE MOUNTING
flat 1,5 mm

Replacement for:Summa 500-9802 Esko BLD-DF112 G42444299 MultiCam 94-02466-910.301-S ZÜND Z10 in 25mm Blackman & White BW112 Colex T00312 50-degree Dual Edge Solid Carbide Wide Diameter Knife Blades
