Multicam 84-00193-BT-56240 Tungsten Carbide Round Shank Shaft knife Blades
Multicam 84-00193-BT-56240 tungsten carbide oscillating blade with 2×30° angle, Ø6mm round shaft, and 40mm cutting depth—perfect for carbon fiber, foam board, and composite material cutting.
- Description

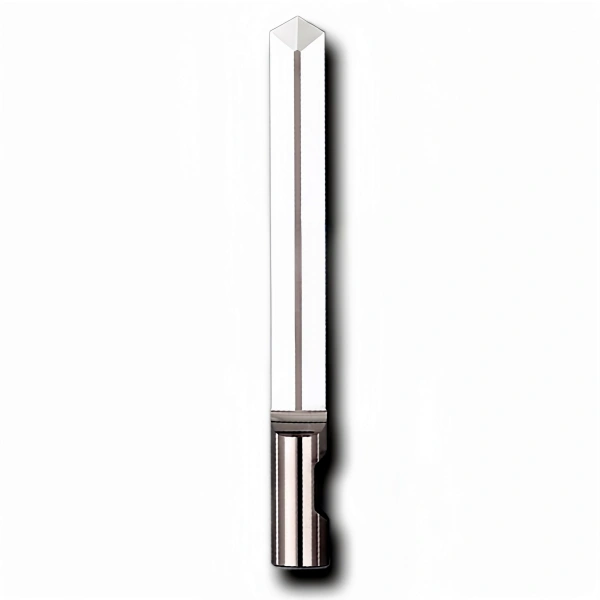

Multicam 84-00193-BT-56240 Tungsten Carbide Round Shank Shaft Knife Blades
CUTTER BRAND
Multicam

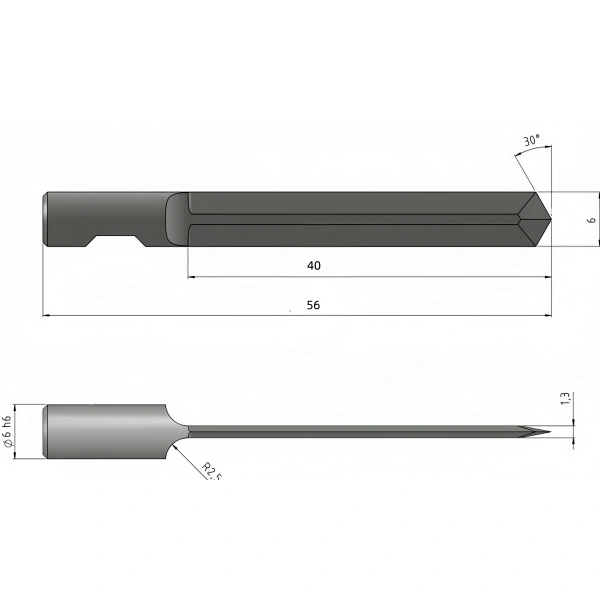

ANGLE
2×30°
KNIFE HEIGHT
56,00 mm
MAX. CUTTING DEPTH
40,00 mm
MATERIALS
Aramid fibers, Canvas, Carbon fibers, Cardboard, Corrugated cardboard, Foam board, Folding Carton, Honeycomb, Magnetic foil, Polyester fabric, PVC, Reflective foil, Rubber, Textiles
KNIFE TYPE
Oscillating blade, Weldon
REPLACEMENT
Yes
KNIFE/BLADE MOUNTING
round Ø 6 mm
Product Description:
Multicam 84-00193-BT-56240 carbide oscillating blade with Ø6mm round handle (Weldon interface), designed for Multicam CNC cutting system, with 2×30° double bevel blade angle, blade height 56mm, maximum cutting depth 40mm, can meet the precision cutting needs of various industrial composite materials and high-performance fabrics.
Suitable for cutting: aramid fiber, carbon fiber, canvas, cardboard, corrugated cardboard, foam board, honeycomb board, magnetic film, polyester cloth, PVC, reflective film, rubber material and various technical textiles. Made of high-quality tungsten carbide material, it has excellent wear resistance and sharpness, and is suitable for high-frequency oscillating cutting operations.
Widely used in automobile manufacturing, aviation composite processing, packaging printing, advertising logos, textile industry, etc.
Multicam 84-00193-BT-56240 blade, tungsten steel oscillating blade, Ø6mm round handle knife, Weldon interface tool, Multicam replacement knife, 2×30° double-edged blade, carbon fiber cutting knife, foam board blade, CNC industrial cutting knife, composite material cutting knife
