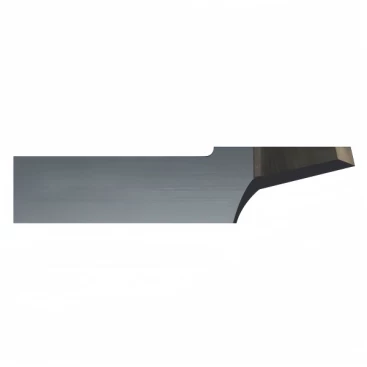

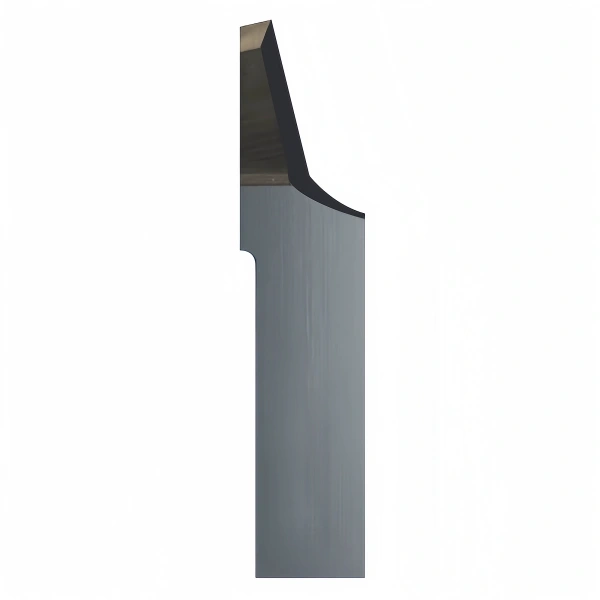

JingWei J391 oscillating cutting blade, 5° blade angle, suitable for precision cutting of flexible composite materials. Made of tungsten carbide, compatible with JingWei series electric and pneumatic cutter heads, suitable for a variety of oscillating and drag tool systems.

Category:

JingWei J391 Carbide Oscillating Knife Blades

Model: J391

Blade type: Oscillating Knife

Material: Tungsten Carbide

Size: 28mm (length) × 5.5mm (width) × 1.0mm (thickness)

Cutting angle: 5°

Recommended cutting thickness: <5mm

Recommended materials: Flexible composite materials (such as carbon fiber), foam board, folding cardboard, metal foil film, mesh cloth, polyester cloth, solid cardboard, etc.

Applicable tool head:

Electric knife head: JWT-029-00-00, JWT-021-00-00, JWT-EOT0301~0304

Compatible: Drag knife system / V-groove system (can be used flexibly)

Product Description:

JingWei J391 carbide vibrating blade is a standard vibrating cutting blade designed for JingWei series automatic cutting equipment. The blade is made of high-hardness tungsten carbide and has excellent wear resistance and cutting accuracy. The blade size is 28×5.5×1.0mm, the blade angle is 5°, and it is suitable for cutting flexible composite materials with a thickness of less than 5mm.
