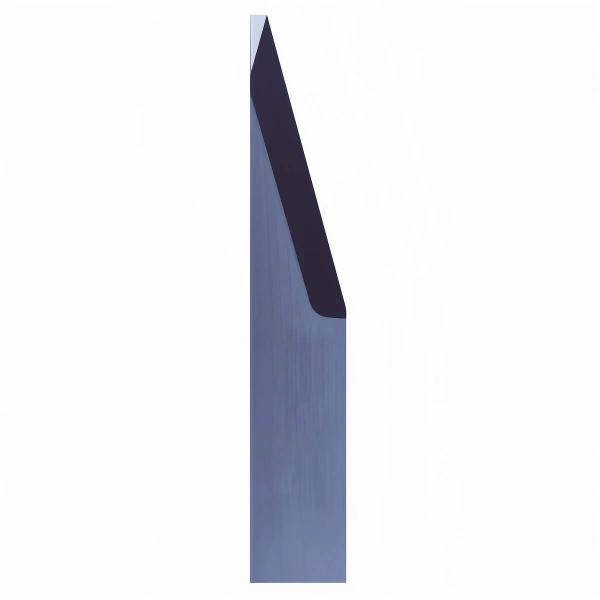

JingWei JWei J307 Carbide Oscillation knife Blades
JingWei J307 vibrating blade, 74° cutting angle, suitable for cutting corrugated cardboard and packaging materials, supports 13mm depth, compatible with JWEI automatic vibrating cutting machine.
- Description
JingWei JWei Knives/knife Blade J307 for JWEI Oscillating Knife Digital Vibrating Cutting Machine
CUTTER BRAND
Jingwei

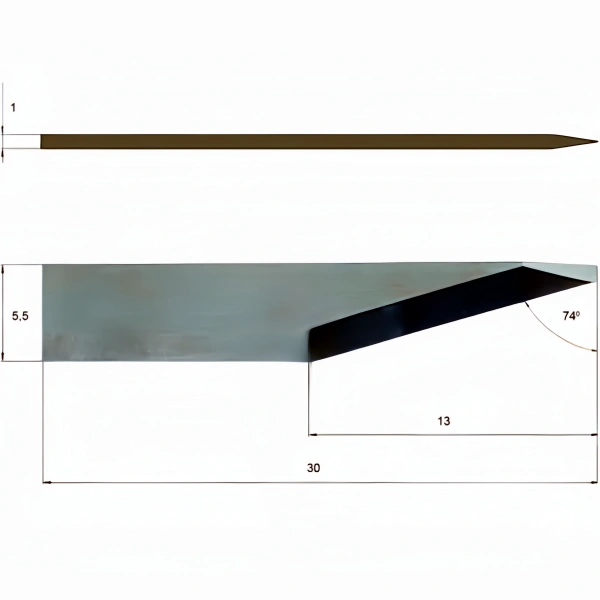

ANGLE
74°
KNIFE HEIGHT
30,00 mm
KNIFE WIDTH
5,50 mm
THICKNESS
1,00 mm
MAX. CUTTING DEPTH
13,00 mm
MATERIALS
Chevron board, Corrugated cardboard
KNIFE TYPE
Oscillating blade
Product Description：
JingWei J307 Oscillating blade is specially designed for JWEI CNC vibration cutting system. It adopts 74° cutting angle, which is suitable for fine and efficient cutting of packaging materials such as corrugated board (Chevron board), corrugated box, etc. The blade height is 30mm, width is 5.5mm, thickness is 1mm, and supports a maximum cutting depth of 13mm, which meets the cutting needs of medium-thickness materials.
