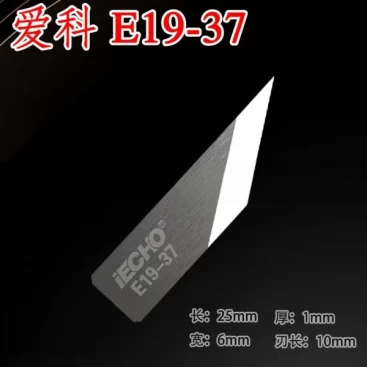

iEcho cutting blade E19-37 Tungsten Carbide Oscillating Knife
iEcho E19-37 Oscillating Blade for PK-1209 CNC Cutting Machine and EOT Clamp 3. Made of tungsten steel, it is suitable for cutting corrugated cardboard, plastic and carton with a cutting depth of up to 10mm.
- Description
iEcho E19-37 Tungsten Carbide Oscillating Knife Blades for PK-1209 EOT(Clamp3),
CUTTER BRAND
Iecho
KNIFE HEIGHT
25,00 mm
MAX. CUTTING DEPTH
10,00 mm
KNIFE WIDTH
6,00 mm
ANGLE
60°
THICKNESS
1,00 mm
MATERIALS
Corrugated cardboard, Corrugated plastic, Folding Carton, Paper
KNIFE TYPE
Oscillating blade
KNIFE/BLADE MOUNTING
flat 1 mm
Product Description:

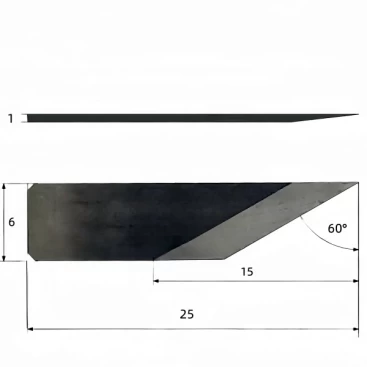

The iEcho E19-37 cutting blade is a high-performance tungsten steel oscillating blade suitable for the PK-1209 CNC cutting machine in the PK series. It must be used with EOT (oscillating blade assembly) and Clamp 3 fixture. The blade is 25mm high, 1mm thick, with a cutting angle of 60° and a maximum cutting depth of 10mm. It is designed for corrugated cardboard, corrugated plastic, folding cartons and various paper materials. Its tungsten steel material ensures excellent cutting life and accuracy.
