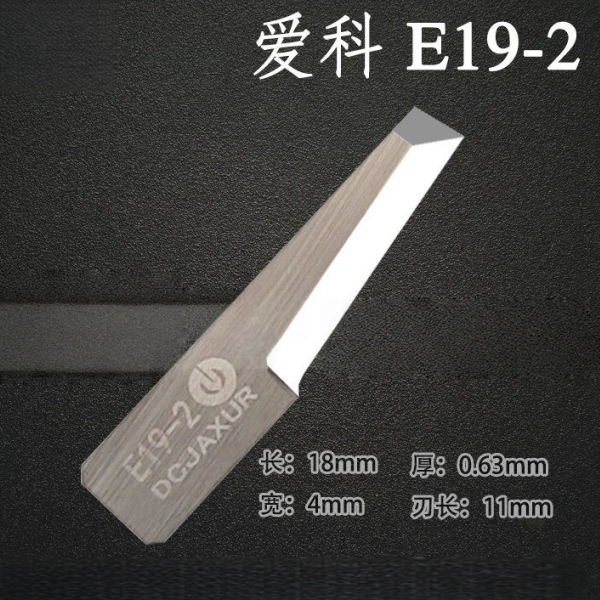

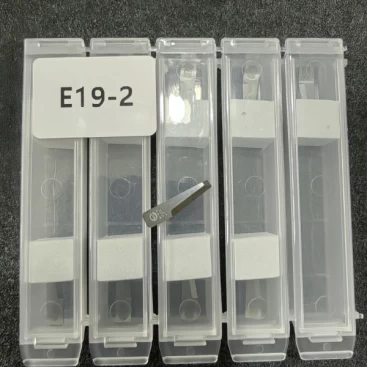

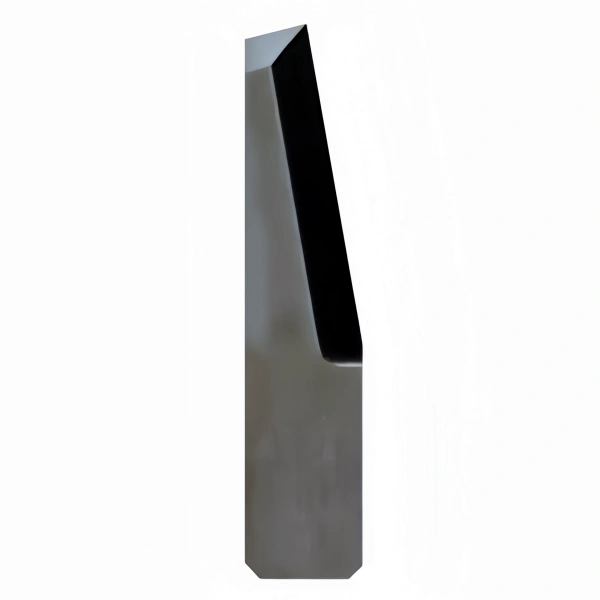

iEcho Cutting blades E19-2 Tungsten Carbide Oscillating Knife
iEcho E19-2 Oscillating Blade, 15°/80° Tungsten Steel Oscillating Blade, suitable for iEcho CNC cutting machine, suitable for corrugated cardboard, foam board, plastic, vinyl and other materials
- Description
iEcho E19-2 Oscillating Cutting Blade Blades – 15°/80° Tungsten Carbide Oscillating Blade for iEcho CNC Cutting Machines
CUTTER BRAND
Iecho
KNIFE HEIGHT
19,00 mm
KNIFE WIDTH
4,00 mm
ANGLE
15°/80°
THICKNESS
0,60 mm
MAX. CUTTING DEPTH
12,00 mm
MATERIALS
Corrugated cardboard, Corrugated plastic, Foam board, Folding Carton, Magnetic foil, Paper, Plastic, Reflective foil, Vinyls
KNIFE TYPE
Flat, Oscillating blade
KNIFE/BLADE MOUNTING
flat 0,6 mm
Product Description:

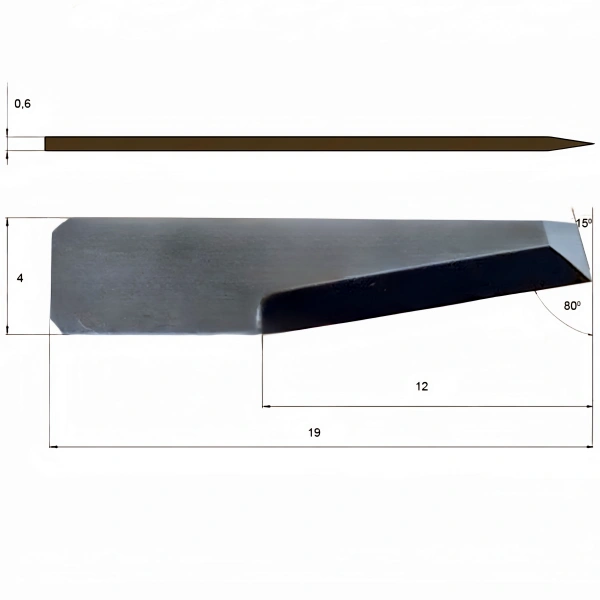

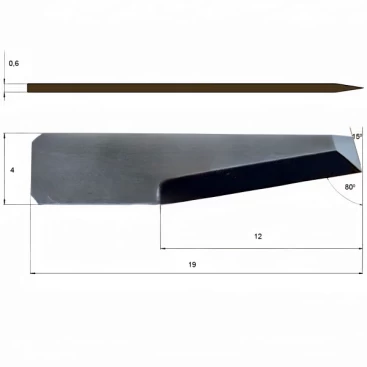

The iEcho E19-2 oscillating blade is made of high-performance tungsten steel with a 15°/80° angle for use with iEcho brand automated cutting equipment. The blade is 19mm high, 4mm wide, 0.6mm thick, and has a maximum cutting depth of 12mm. The flat bottom mounting is 0.6mm and can be easily replaced. This blade is suitable for efficient cutting of corrugated cardboard, foam board, folding cartons, reflective film, plastics, magnetic materials, vinyl and other materials.
