iEcho V-cut Cutting blades E19-11 Tungsten Carbide knife
iEcho E19-11 V-shaped cutting blade, 45° angle tungsten steel material, compatible with iEcho cutting machine, suitable for V-shaped precision cutting of cardboard, foam, corrugated plastic and other materials,
- Description

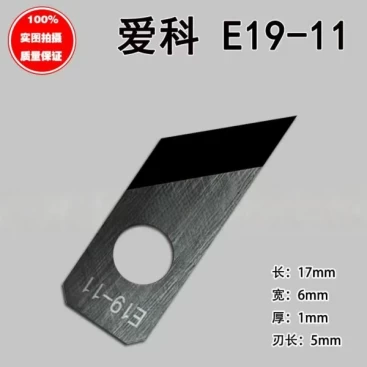

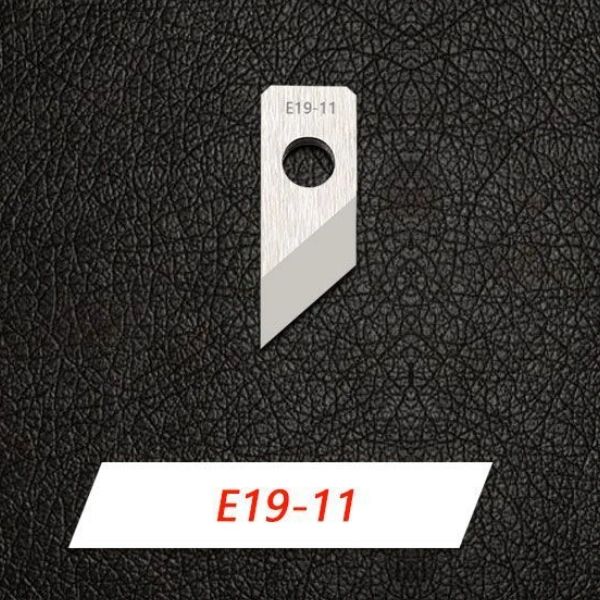

iEcho E19-11 Tungsten Carbide V-cut knife blades
BRAND PLOTTER
Iecho
KNIFE HEIGHT
17.00mm
KNIFE WIDTH
6.00mm
BLADE ANGLE
45°
KNIFE THICKNESS
1.00mm
MAXIMUM CUTTING DEPTH
3.00mm
MATERIALS
Cardboard, Paper, Foam, Corrugated plastic, Corrugated cardboard
KNIFE TYPE
V-cut
BLADE/KNIFE FIXING
flat 1 mm
SUBSTITUTE
Yes
Product Description:

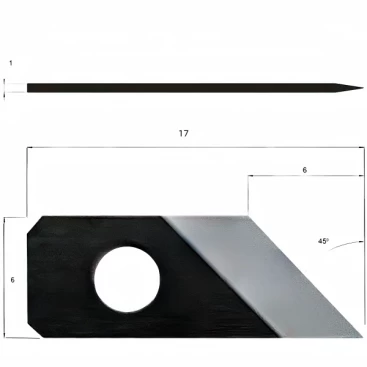

iEcho E19-11 V-Cut blade is made of high-quality tungsten steel with a blade angle of 45°. It is designed for V-cutting and is compatible with iEcho brand CNC cutting equipment. The blade size is 17mm high, 6mm wide, 1mm thick, and the maximum cutting depth is 3mm. It is suitable for cutting cardboard, foam, corrugated plastic, ordinary paper and other materials. The bottom of the blade is a flat 1mm structure
iEcho E19-11 blade, V-Cut cutting knife, tungsten steel blade, V-shaped cutting knife, CNC cutting blade, iEcho cutting accessories,
