iEcho V-cut blades E19-10 – 45° Tungsten Carbide knife
iEcho E19-10 V-Cut blade, 45° tungsten steel material, specially designed for bevel cutting of foam, corrugated cardboard and other materials, supports replacement, suitable for iEcho CNC cutting equipment.
- Description
iEcho E19-10 V-shaped cutting blades – 45° tungsten steel V-Cut knife for iEcho digital cutting machine
BRAND PLOTER
Iecho
KNIFE HEIGHT
17.00mm
KNIFE WIDTH
6.00mm
BLADE ANGLE
45°
KNIFE THICKNESS
1.00mm
MAXIMUM CUTTING DEPTH
6.00mm
MATERIALS
Cardboard, Paper, Foam, Corrugated plastic, Corrugated cardboard
KNIFE TYPE
V-cut
BLADE/KNIFE FIXING
flat 1 mm
SUBSTITUTE
Yes
Product Description:

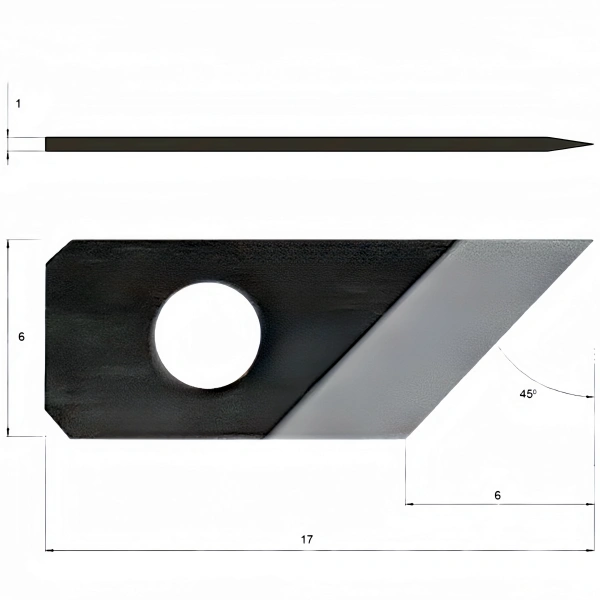

iEcho E19-10 is a high-hardness tungsten steel blade designed for V-shaped cutting, with a blade angle of 45°, a blade height of 17mm, a width of 6mm, a thickness of 1mm, and a maximum cutting depth of 3mm. This blade is suitable for iEcho CNC cutting equipment, and the installation method is flat bottom 1mm. It has excellent wear resistance and cutting accuracy, and is widely used in beveling and angle cutting of materials such as cardboard, foam, corrugated plastics and corrugated cardboard.
