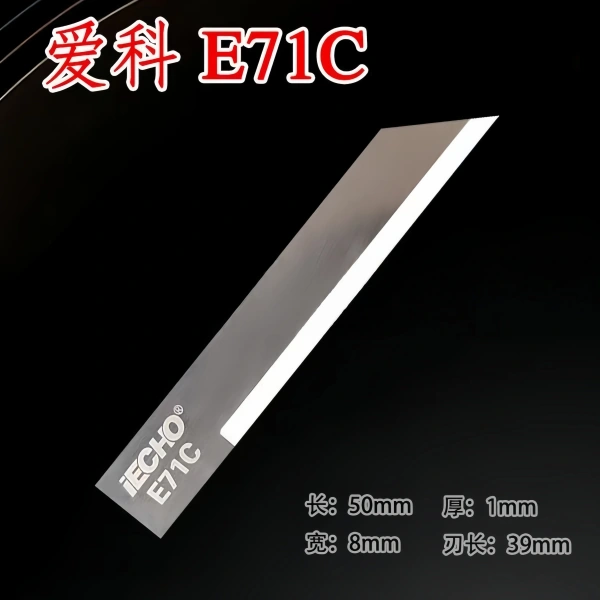

iEcho E71 Tungsten Carbide V-cut Knife blades
iEcho E71 V-shaped tungsten steel blade, 90° angle, suitable for V-groove cutting of structural panels such as foam board, corrugated paper/plastic, compatible with Zünd, Summa, Multicam and other cutting systems.
- Description

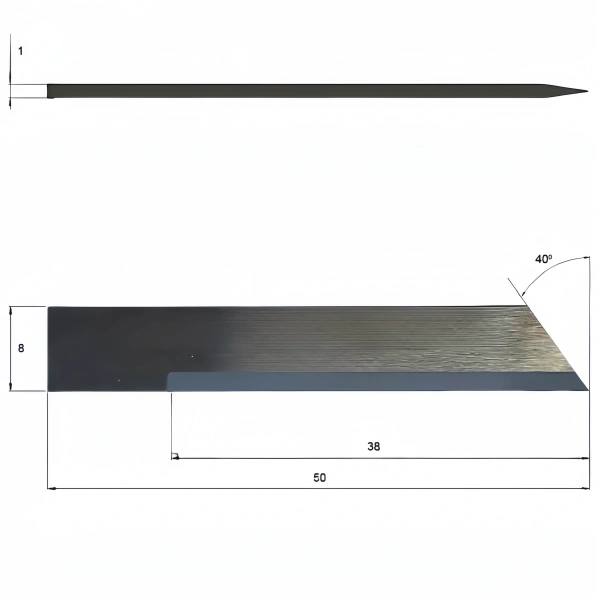

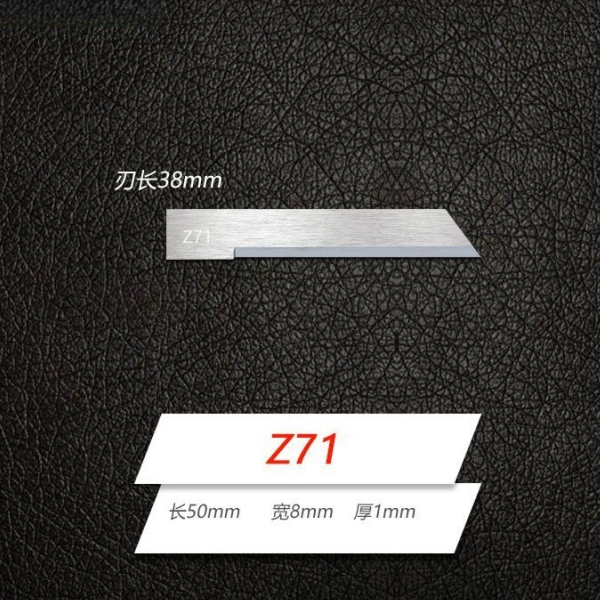

iEcho E71 Tungsten Carbide V-cut Knife blade and Zund Z71 V-Cut Knife Blade 5006045 Summa Blade 500-9826 same
CUTTER BRAND
iEcho
ANGLE
90°
KNIFE HEIGHT
50,00 mm
KNIFE WIDTH
8,00 mm
THICKNESS
1,00 mm
MAX. CUTTING DEPTH
16,00/14,4 mm
KNIFE TYPE
Flat, V-cut
MATERIALS
Corrugated cardboard, Corrugated plastic, Covering, Foam board
KNIFE/BLADE MOUNTING
flat 1 mm
Product Description:
iEcho E71 V-shaped cutting blade is made of high-hardness tungsten steel, with a precise and sharp tip, suitable for V-groove cutting and chamfering, and widely used in cutting structural materials such as corrugated cardboard, foam board, corrugated plastic board. The blade is a flat structure (flat 1 mm), with a blade height of 50 mm, a width of 8 mm, a thickness of 1 mm, a 90° angle design, and a maximum cutting depth of 16.0 mm / 14.4 mm.
Compatible with multi-brand V-cutter systems, including: Zünd (5006045, Z71), iEcho (E71), Summa (500-9826 / 500-0826), Comagrav, Bullmer, Multicam, etc.
