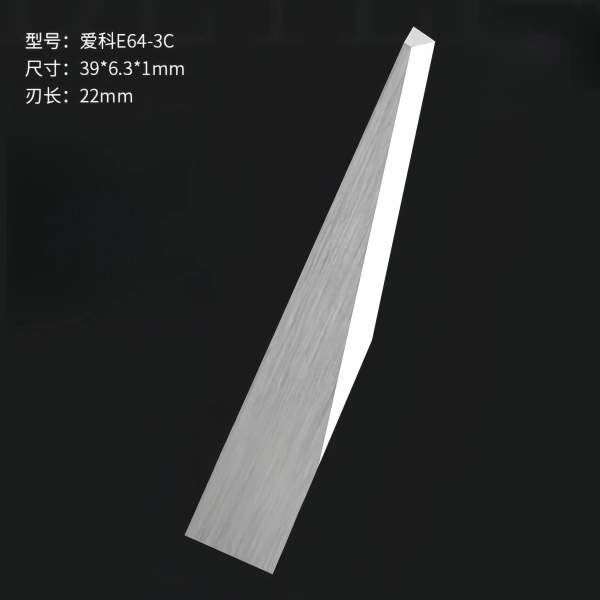

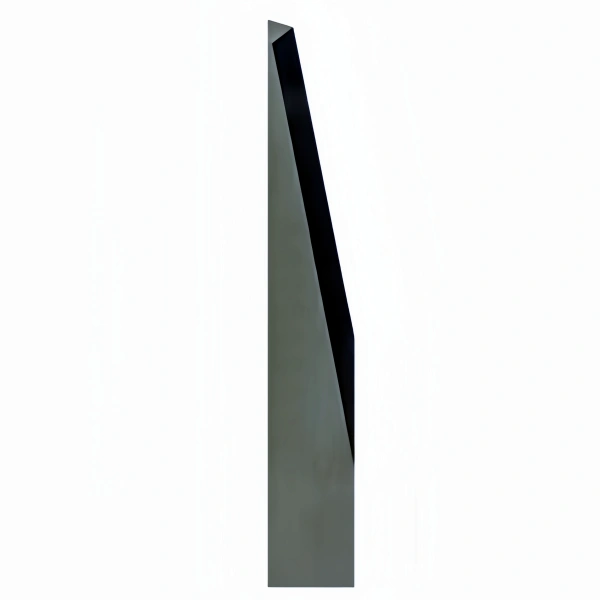

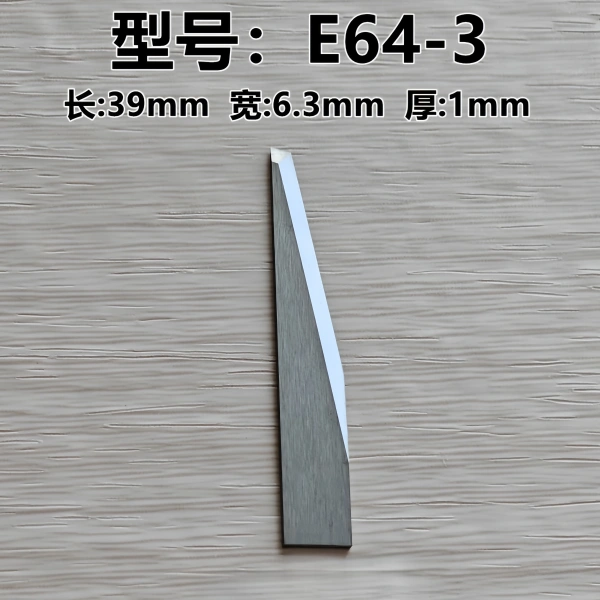

iEcho E64-3 Tungsten Carbide Oscillating Knife Blades
iEcho E64-3 vibrating tungsten steel blade is suitable for precision cutting of corrugated paper, honeycomb board and foam materials. It supports 27mm depth and is compatible with IECHO CNC flatbed cutting equipment.
- Description
iEcho E64-3 Tungsten Carbide Oscillating Knife Blades
CUTTER BRAND
Iecho

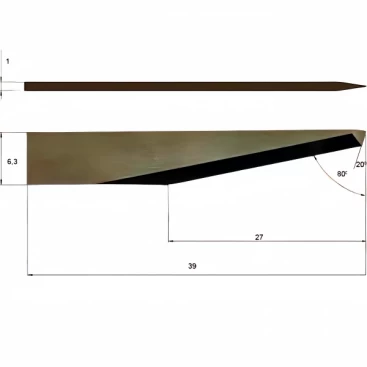

KNIFE HEIGHT
39,00 mm
KNIFE WIDTH
6,30 mm
ANGLE
20°/80°
THICKNESS
1,00 mm
MAX. CUTTING DEPTH
27,00 mm
KNIFE TYPE
Flat, Oscillating blade
MATERIALS
Corrugated cardboard, Honeycomb, Paper, Polyethylene foam
KNIFE/BLADE MOUNTING
flat 1 mm
Compatible devices:
iEcho TK series, BK series and other models of automatic Oscillating cutting platforms
Product Description：
iEcho E64-3 is a high-performance tungsten steel oscillating blade designed for IECHO CNC cutting equipment. It adopts a 20°/80° dual-angle design, combined with a 1mm thick flat blade mounting structure, to ensure high precision and high durability when cutting a variety of industrial materials. The blade supports a maximum cutting depth of 27mm and is suitable for flexible and medium-hard materials such as corrugated cardboard, honeycomb cardboard, PE foam, and packaging paper.
