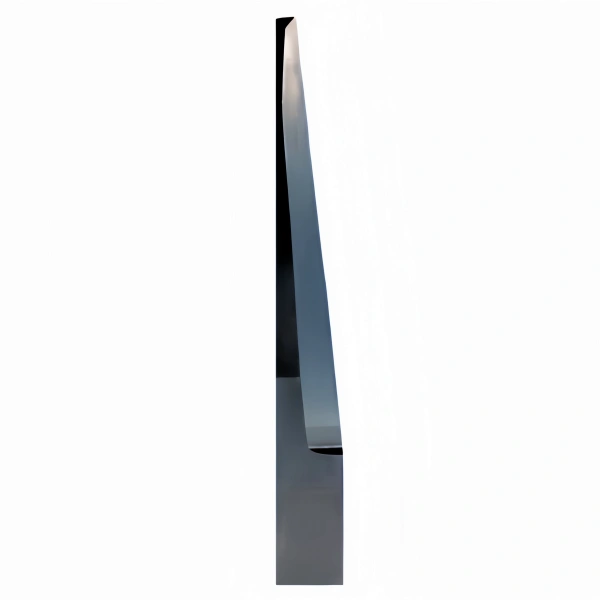

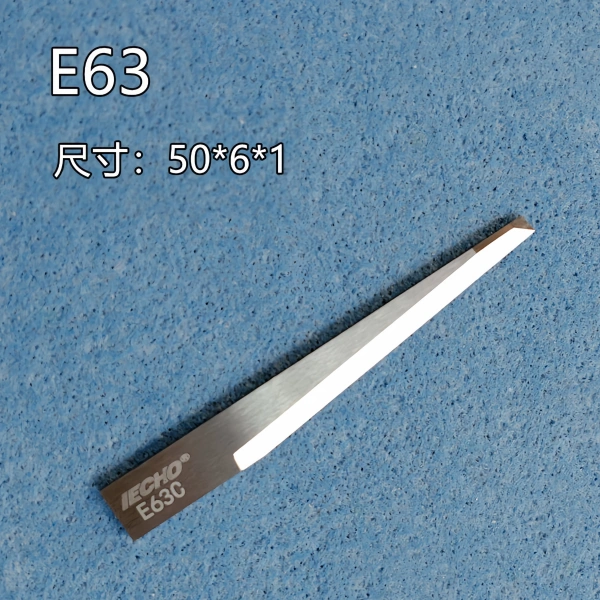

iEcho E63 Tungsten Carbide Oscillating Knife Blade

iEcho E63 Tungsten Carbide Oscillating Knife Blades iECHO Cutter Blades suitable for applications on the BK3 and TK3S flatbed cutter range.

CUTTER BRAND
Iecho

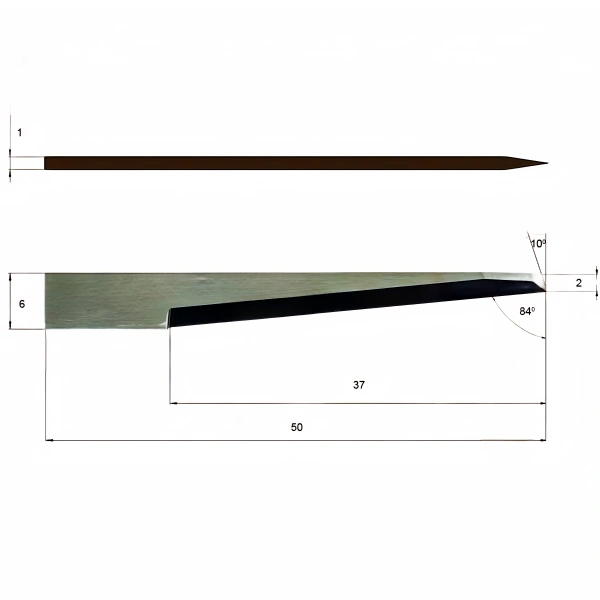

KNIFE HEIGHT
50,00 mm

KNIFE WIDTH
6,00 mm

THICKNESS
1,00 mm

ANGLE
10°/84°

MAX. CUTTING DEPTH
37,00 mm

KNIFE TYPE
Oscillating blade, Pointed

MATERIALS
Carbon fibers, Corrugated cardboard, Felt, Glass fibers, Leather, Non-woven fabric, Nylon fabric, Polyester fabric, Rubber

KNIFE/BLADE MOUNTING
flat 1 mm

Product Description:

iEcho E63 carbide oscillating blade is designed for iECHO BK3 and TK3S platform cutting systems. It has a 10°/84° dual-angle structure, which provides strong support for high-precision cutting of dense or fibrous materials. The blade height is 50mm, the thickness is 1.00mm, and the maximum cutting depth can reach 37mm. It is suitable for high-intensity application scenarios such as packaging industry, composite material processing, leather and textile cutting.

The 1mm flat bottom mounting structure is adopted to ensure perfect fit with the vibrating blade head of iECHO CNC equipment. Wear-resistant tungsten carbide material is selected to ensure the stable performance and long life of the blade in continuous operation.

Applicable materials include: carbon fiber, corrugated cardboard, felt, fiberglass, leather, rubber, non-woven fabrics, nylon fabrics, polyester fabrics, etc.
