iEcho E42 Tungsten Carbide Oscillating Cutting Knife Blade
iEcho E42 tungsten carbide oscillating blade with 15°/55° angle, 0.63mm flat mount, and pointed tip—ideal for carbon fiber, aramid, foam board, and composite material cutting.
- Description

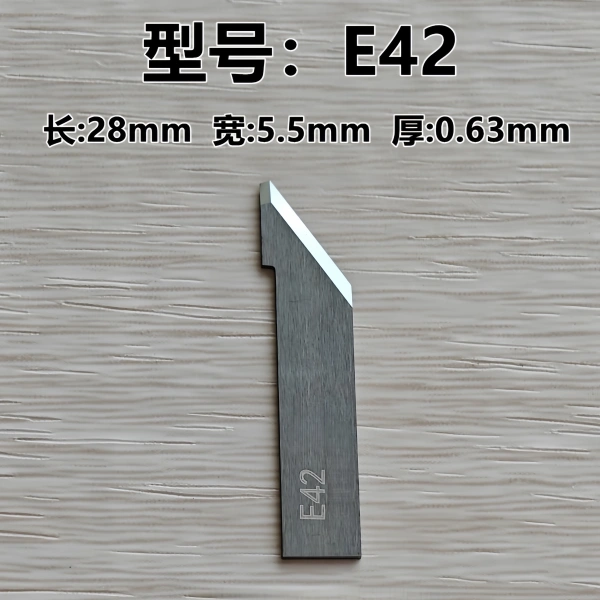

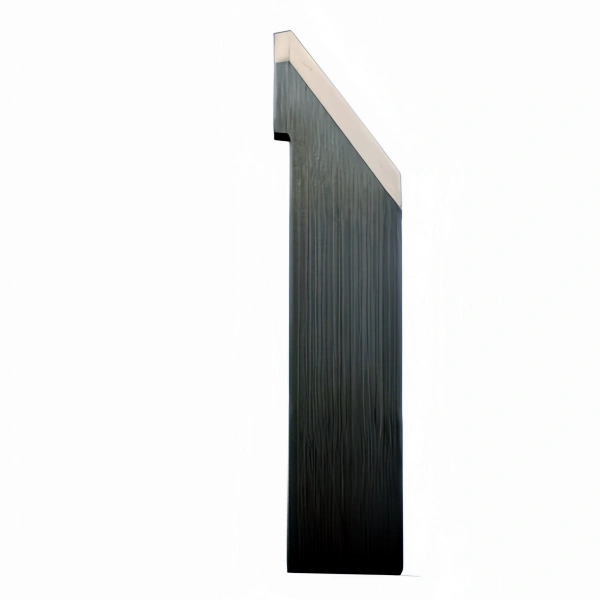

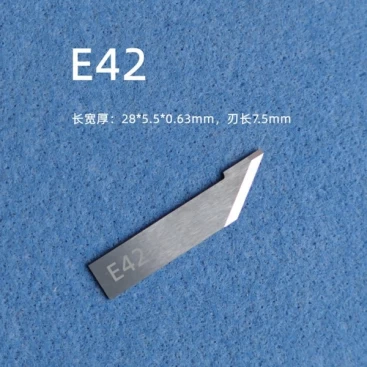

iEcho E42 Tungsten Carbide Oscillating Knife Blade compatible for iEcho automated cutting machine

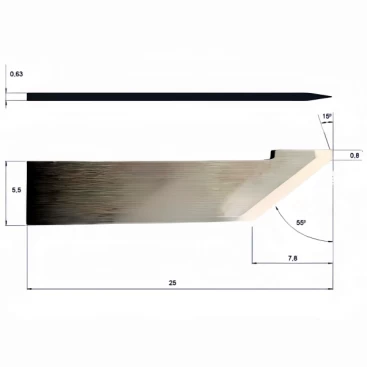

Technical Specifications
| Item | Specification |
|---|---|
| Model | E42 |
| Brand | iEcho |
| Material | Tungsten Carbide |
| Knife Type | Oscillating Blade |
| Mounting | Flat 0.63 mm |
| Knife Height | 28.00 mm |
| Thickness | 0.63 mm |
| Cutting Angle | 15° / 55° |
| Max Cutting Depth | 7.80 mm |
| Blade Type | Pointed |
| Materials | Carbon fiber, Aramid, Foam, Leather |
| Replacement | Yes |
Product Overview
The iEcho E42 oscillating knife blade is a high-performance tungsten carbide blade designed for precision cutting of composite and industrial materials. With a slim 0.63mm thickness and optimized dual angles (15° / 55°), it delivers clean and accurate cutting results.
Why Choose This Blade?
The iEcho E42 blade is optimized for high-precision cutting of composite materials. Its thin profile and dual-angle design allow for clean cuts with minimal material damage, making it ideal for demanding industrial applications.
FAQ
What materials can this blade cut?
It can cut carbon fiber, aramid fibers, foam, leather, and textiles.
What is the cutting depth?
The maximum cutting depth is 7.8 mm.
Is this suitable for composite materials?
Yes, it is designed specifically for composite and fibrous materials.
What is the blade thickness?
The blade thickness is 0.63 mm.
