iEcho E27 Carbide Double Edge Oscillating Knife Blade
iEcho E27 double-edged tungsten steel vibrating blade, 55°/85° dual angle design, 0.63mm thickness, maximum cutting depth 25mm, suitable for carbon fiber, leather, glass fiber, non-woven fabrics, rubber and other materials, universal flat mounting interface.
- Description

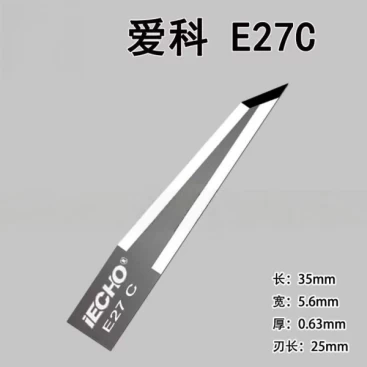

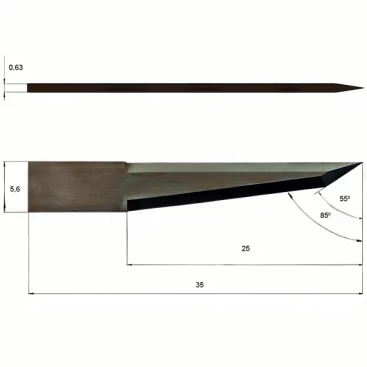

iEcho E27 Carbide Double Edge Oscillating Knife Blade
CUTTER BRAND
Iecho
KNIFE HEIGHT
35,00 mm
ANGLE
55°/85°
KNIFE WIDTH
5,60 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
25,00 mm
KNIFE TYPE
Flat, Oscillating blade
MATERIALS
Carbon fibers, Corrugated cardboard, Felt, Glass fibers, Leather, Non-woven fabric, Nylon fabric, Polyester fabric, Rubber
KNIFE/BLADE MOUNTING
flat 0,63 mm
Product Description:
iEcho E27 is a high-precision double-edge tungsten steel oscillating blade, suitable for all types of iEcho CNC cutting equipment. It adopts a 55°/85° dual-angle cutting design to improve cutting flexibility and efficiency, and is specially developed for medium-thick flexible materials.
