iEcho E26-3 Tungsten Carbide Oscillating Knife Blades
iEcho E26-3 tungsten carbide oscillating blade, 22°/63° angle, 30mm height, flat 1mm mount. Suitable for carbon fiber, leather, felt, and other industrial materials.
- Description

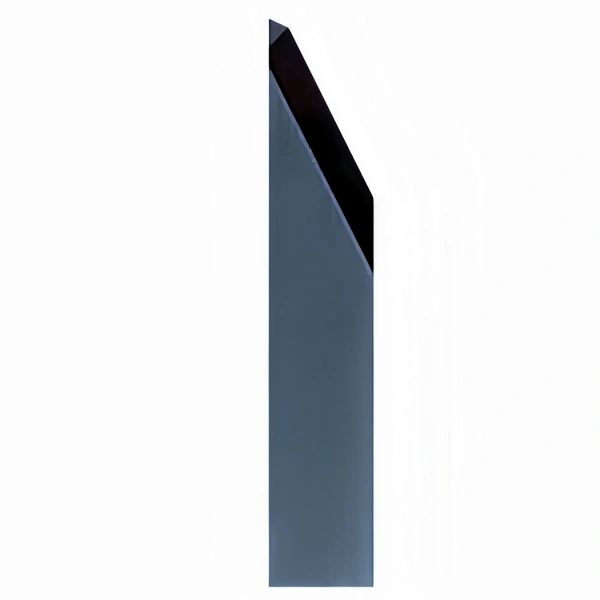

iEcho E26-3 Oscillating Knife Blades
CUTTER BRAND
Iecho

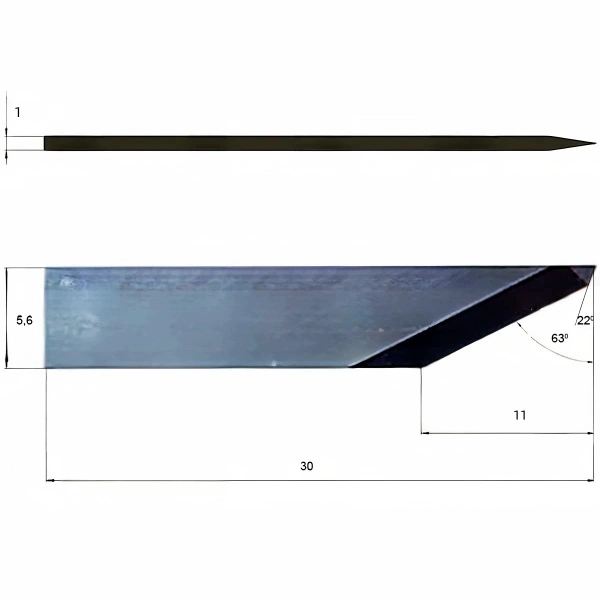

KNIFE HEIGHT
30,00 mm
KNIFE WIDTH
5,60 mm
ANGLE
22°/63°
THICKNESS
1,00 mm
MAX. CUTTING DEPTH
11,00 mm
KNIFE TYPE
Flat, Oscillating blade
MATERIALS
Carbon fibers, Corrugated cardboard, Felt, Glass fibers, Leather, Non-woven fabric, Nylon fabric, Polyester fabric, Rubber
KNIFE/BLADE MOUNTING
flat 1 mm
Product Description:
iEcho E26-3 Oscillating Blade is made of high-quality tungsten carbide material with excellent hardness and wear resistance. The dual-angle design (22°/63°) is suitable for cutting different material structures. The blade is 30mm high, 5.6mm wide, 1.00mm thick, and has a maximum cutting depth of 11mm. The blade is a flat structure (Flat 1mm) and is suitable for the oscillating tool head in the iEcho automatic cutting system.
