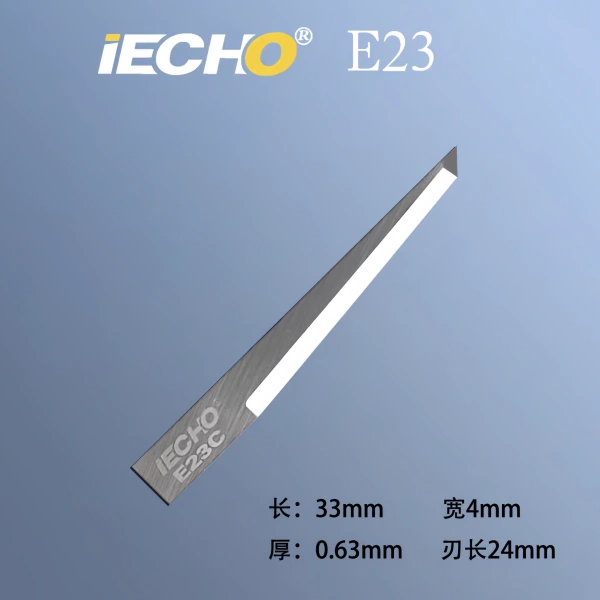

iEcho Replacement Blades E23 Tungsten Carbide Oscillating Knife
iEcho E23 vibrating blade, made of tungsten steel, 0.63mm thick, maximum cutting depth 21mm, suitable for foam, insulation pads, rubber and other materials, compatible with EOT and POT vibrating cutters, and supports industrial raw materials such as Divinycell.
- Description
iEcho blade E23 compatible with iEcho automated cutting machine
✅ Product Parameters (Specs):
Brand: iEcho
Model: E23
Type: Oscillating blade

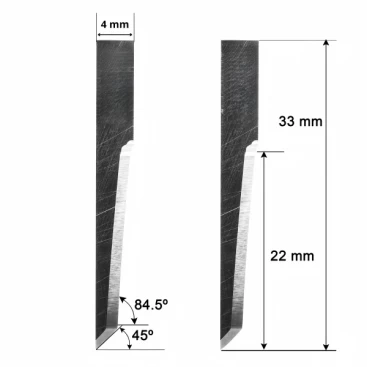

Thickness: 0.63 mm
Knife Width: 4.0 mm
Max Cutting Depth: 21 mm
Material: Tungsten Carbide – HM (Hard Metal)
Tool Compatibility:
EOT-250 (Electric Oscillating Tool)
POT 1.5 (Pneumatic Oscillating Tool)
Pre-cut parameters (Pre-cut): 1.8 + 0.1 × Tm
Recommended materials (Materials):
Corrugated plastic
Foam
Folding carton
Insulating mat
Rubber
Sandwich board
Product Description:
iEcho E23 replacement oscillating blade is made of high-hardness tungsten carbide (Tungsten Carbide – HM), suitable for EOT electric oscillating cutters and POT pneumatic oscillating cutters. The blade is 0.63mm thick, 4.0mm wide, and has a maximum cutting depth of 21mm. It is designed with a precise pre-cut function (Pre-cut: 1.8 + 0.1 × Tm), which can effectively improve the efficiency and accuracy of cutting multi-layer materials.
