iEcho Blades E20 Tungsten Carbide Oscillating Knife

iEcho E2 Tungsten Carbide Kiss-cut Round Stock Blade
iEcho E21 Tungsten Carbide Oscillating Knife Blades

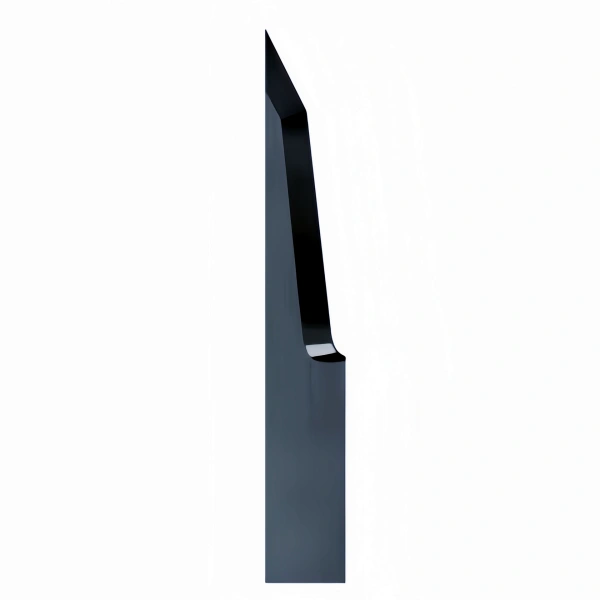

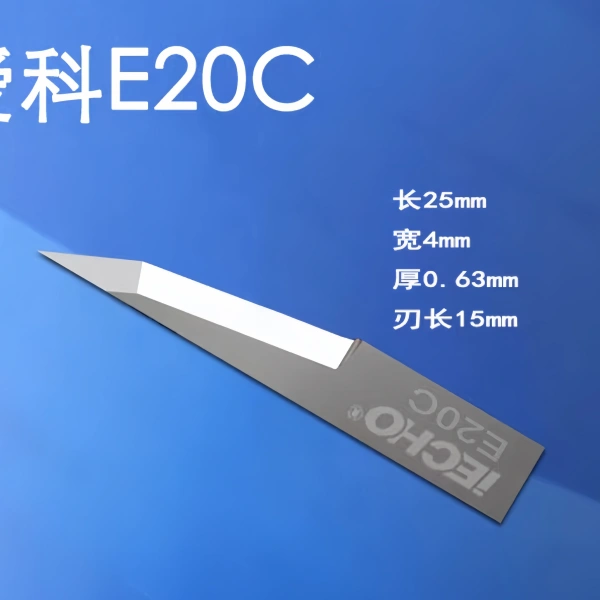

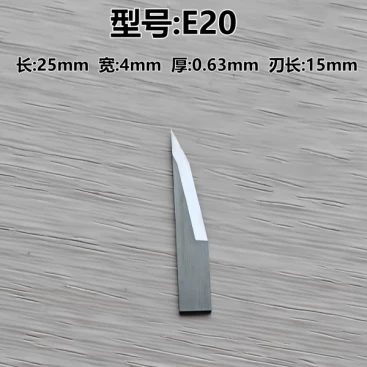

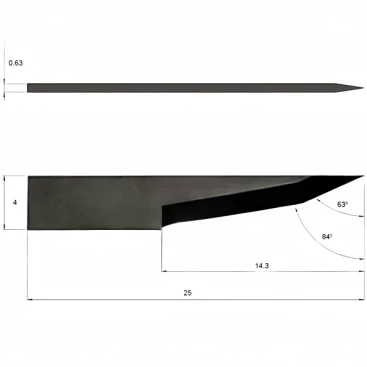

iEcho E20 tungsten steel vibrating blade, 65° pointed design, suitable for precise cutting of foam, corrugated plastic, magnetic film and other materials, blade height 25mm, maximum cutting depth 14.3mm.

Category:

iEcho E20 Tungsten Carbide Oscillating Knife Blades compatible for iEcho automated cutting machine


CUTTER BRAND
Iecho

ANGLE
65°

KNIFE HEIGHT
25,00 mm

KNIFE WIDTH
4,00 mm

THICKNESS
0,63 mm

MAX. CUTTING DEPTH
14,30 mm

KNIFE TYPE
Flat, Oscillating blade, Pointed

MATERIALS
Corrugated cardboard, Corrugated plastic, Felt, Foam board, Folding Carton, Magnetic foil, Polyester fabric, Rubber

KNIFE/BLADE MOUNTING
flat 0,63 mm

Replacement for: BT-2380 XZ0020 Esko Kongsberg G42421974 42421974 BLD-SF420 i-420,Summa 500-0811 500-9811,Zund 3910313 Z20,Blackman & White BW20,Colex T00420,iEcho E20,Comagrav FNS10,Aristo 910.313,Gunnar GZ20

Product Description:

iEcho E20 Oscillating Blade is designed for iEcho automatic cutting equipment. It is made of tungsten steel with strong wear resistance, suitable for high-precision and medium-depth material cutting operations. The blade angle is 65°, the blade height is 25mm, the blade width is 4mm, the thickness is 0.63mm, and the maximum cutting depth can reach 14.3mm. The blade tip is a pointed design, suitable for cutting details and complex structures. The flat handle (Flat 0.63 mm) is compatible with all series of iEcho oscillating tool heads.
