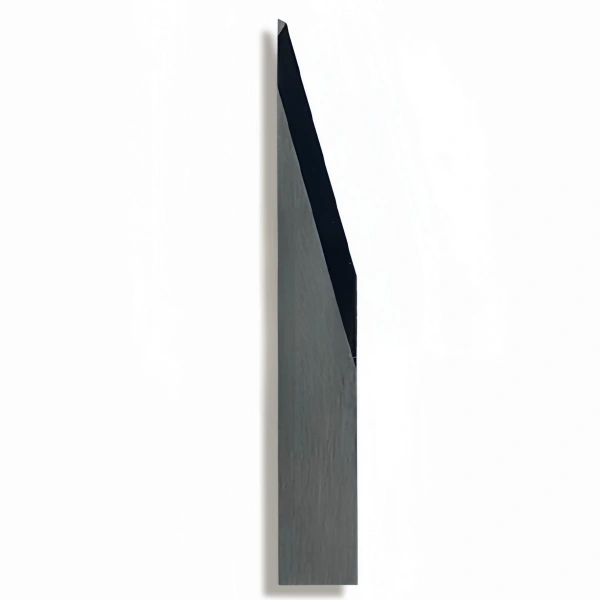

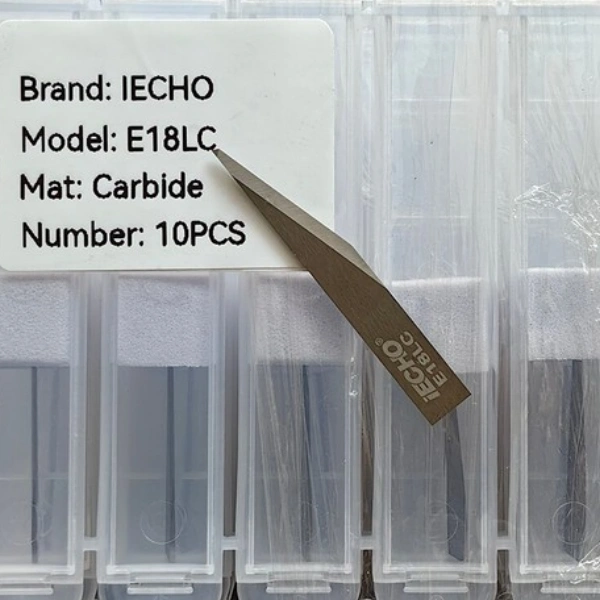

iEcho Cutting blades E18LC Tungsten Carbide Oscillating Blades

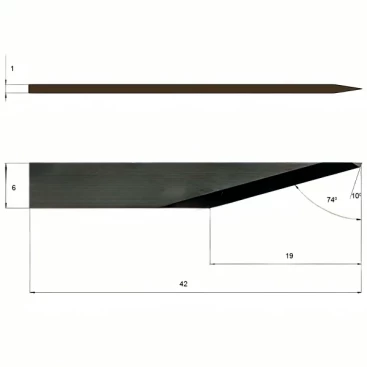

iEcho E18LC vibrating blade, 74° blade angle, 42mm high, 1mm thick, suitable for iEcho cutting machine, maximum cutting depth of 19mm, suitable for efficient and accurate cutting of materials such as PVC, reflective film, self-adhesive film, etc.
- Description
iEcho E18LC Oscillating Blades Applicable to iEcho digital cutting machine
CUTTER BRAND
Iecho
KNIFE HEIGHT
42,00 mm
KNIFE WIDTH
6,00 mm
THICKNESS
1,00 mm
ANGLE
74°
MAX. CUTTING DEPTH
19,00 mm
MATERIALS
Canvas, Folding Carton, Gasket materials, Paper, Polyester fabric, PVC, Reflective foil, Reflective vinyl film, Self-adhesive vinyl film
KNIFE TYPE
Flat, Oscillating blade
REPLACEMENT
Yes
KNIFE/BLADE MOUNTING
flat 1 mm
Product Description:
iEcho E18LC is a high-quality tungsten steel vibrating blade with a blade height of 42 mm, a thickness of 1.00 mm, a blade angle of 74°, and a maximum cutting depth of 19 mm. This model is suitable for iEcho CNC vibrating cutting machines and adopts a flat bottom mounting structure to ensure the stability and accuracy of the blade during high-speed cutting. Its excellent wear resistance and cutting performance are widely used in a variety of materials such as canvas, folding cardboard, gasket materials, polyester cloth, PVC, reflective film, self-adhesive film, etc.
iEcho E18LC blade, oscillating blade, tungsten steel oscillating blade, CNC cutting tool, iEcho accessories, oscillating blade replacement, 74 degree angle blade
