iEcho Cutting blades E18 Tungsten Carbide Oscillating Knife Blades

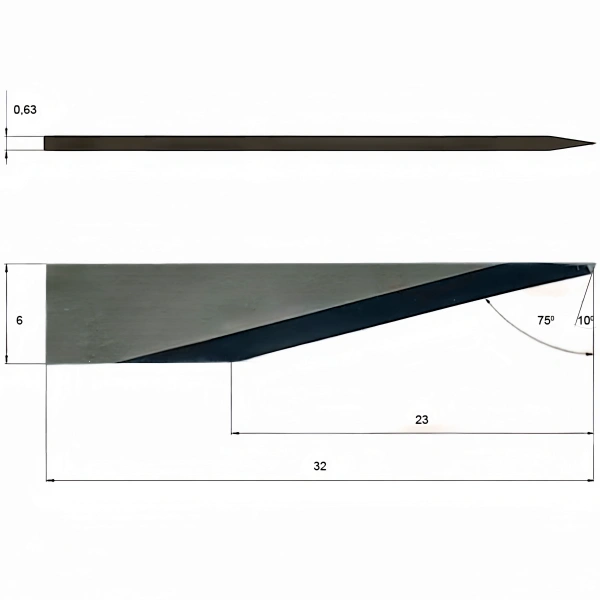

iEcho E18 oscillating blade, made of tungsten steel, 75° blade angle, maximum cutting depth of 23mm, specially designed for demanding cutting applications such as PVC, self-adhesive films, reflective materials, etc.
- Description
iEcho E18 Oscillating Knife Blades
CUTTER BRAND
Iecho
KNIFE HEIGHT
32,00 mm
KNIFE WIDTH
6,00 mm
ANGLE
75°
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
23,00 mm
MATERIALS
Canvas, Folding Carton, Gasket materials, Paper, Polyester fabric, PVC, PVC, Reflective foil, Reflective vinyl film, Self-adhesive vinyl film
KNIFE TYPE
Flat, Oscillating blade
KNIFE/BLADE MOUNTING
flat 0,63 mm
Product Description:
iEcho E18 is a high-quality tungsten steel vibrating cutting blade with a blade angle of up to 75°, a blade length of 32 mm, a thickness of 0.63 mm, and a maximum cutting depth of up to 23 mm. It is particularly suitable for industrial material applications that require high-depth and high-precision cutting. This blade adopts a flat-bottom mounting structure and matches the iEcho automatic cutting equipment. It is widely used in complex processing scenarios of materials such as canvas, folding cardboard, gasket materials, polyester fabrics, PVC, self-adhesive films, reflective films, etc. Its high hardness and high toughness of tungsten steel ensure excellent durability and precision.
iEcho E18 blade, CNC oscillating tool, tungsten steel oscillating knife, ultra-deep cutting blade, , iEcho cutting machine accessories, flat bottom oscillating knife
