iEcho cutter blades E16-2 Tungsten Carbide Oscillating Knife
iEcho E16-2 oscillating blade, made of tungsten steel, with a 45° cutting angle, is designed for cutting medium-hard materials such as PVC, carbon fiber, ABS, etc., and is suitable for iEcho CNC cutting systems.
- Description

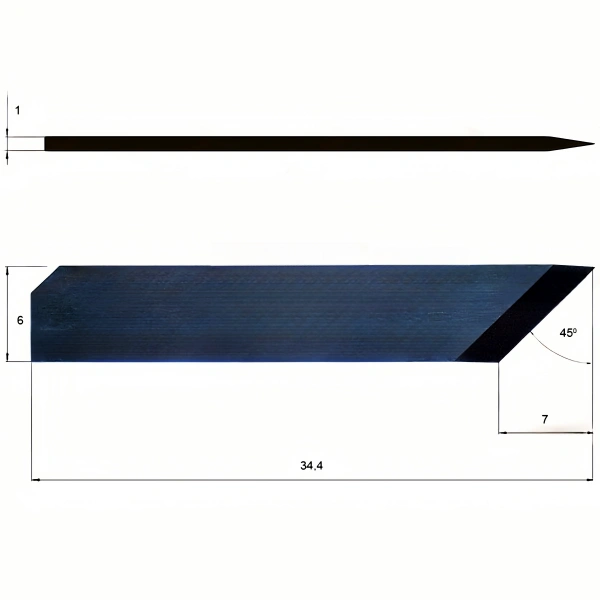

iecho E16-2 Tungsten Carbide Oscillating Knife Blade
CUTTER BRAND
iecho
KNIFE HEIGHT
34,40 mm
KNIFE WIDTH
6,00 mm
ANGLE
45°
THICKNESS
1,00 mm
MAX. CUTTING DEPTH
7,00 mm
KNIFE TYPE
Flat, Oscillating blade
MATERIALS
ABS board, Carbon fibers, Chevron board, Gasket materials, PVC, PVC
KNIFE/BLADE MOUNTING
flat 1 mm
Product Description:
iEcho E16-2 tungsten steel oscillating blade, with 45° blade angle and flat bottom structure, has excellent wear resistance and cutting stability. The blade thickness is 1.00mm, the maximum cutting depth can reach 7.00mm, suitable for carbon fiber, ABS board, Chevron board, gasket material and various PVC materials. E16-2 blade is suitable for iEcho cutting equipment and is suitable for the efficient processing needs of medium-hard materials.
