iEcho-E13
iEcho-E13-blades
Iecho-E13-Tungsten-Carbide-Double-Ended-Knife-Blade

Double Ended Knife iEcho E13 Tungsten Carbide Drag blades flat-stock

iEcho Knife E12 Tungsten Carbide Drag blades flat-stock
iEcho E14 Tungsten Carbide Replacement Drag Knife tangencional blade

iEcho E13 double-ended tungsten carbide mop blade, 60° blade angle, suitable for magnetic film, PVC, shoe materials and other materials, compatible with Zünd and Esko systems,

Category:

iEcho E13 Drag Knife blades flat-stock

CUTTER BRAND
Iecho

ANGLE
60°

KNIFE HEIGHT
50,00 mm

KNIFE WIDTH
8,00 mm

THICKNESS
1,50 mm

MAX. CUTTING DEPTH
6,90 mm

KNIFE TYPE
Drag blade, Flat, Kiss Cut

MATERIALS
Canvas, Cardboard, Foil, Footwear materials, Gasket materials, Hard foam, Hard plastic, Magnetic foil, Paper, Plastic, Polycarbonate, Polyester fabric, PVC, PVC, Self-adhesive foil, Sole material, Tarpaulin

REPLACEMENT
Yes

KNIFE/BLADE MOUNTING
flat 1,5 mm

Product Description:

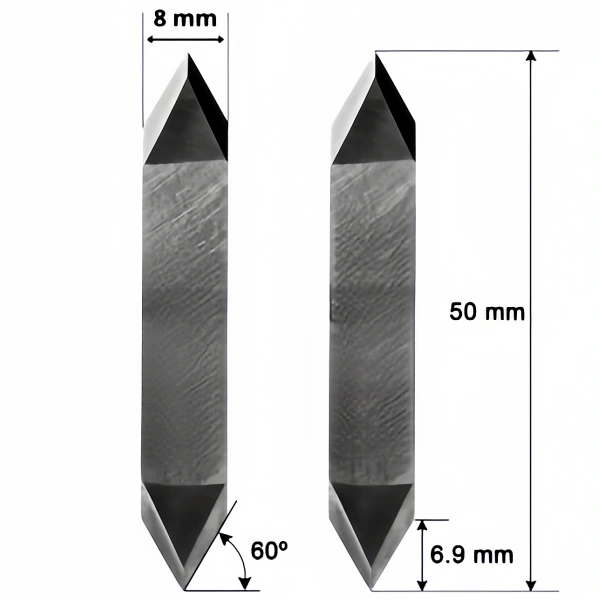

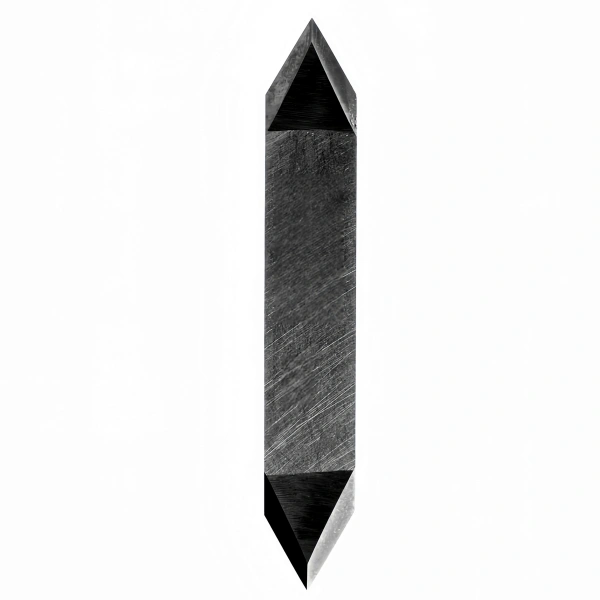

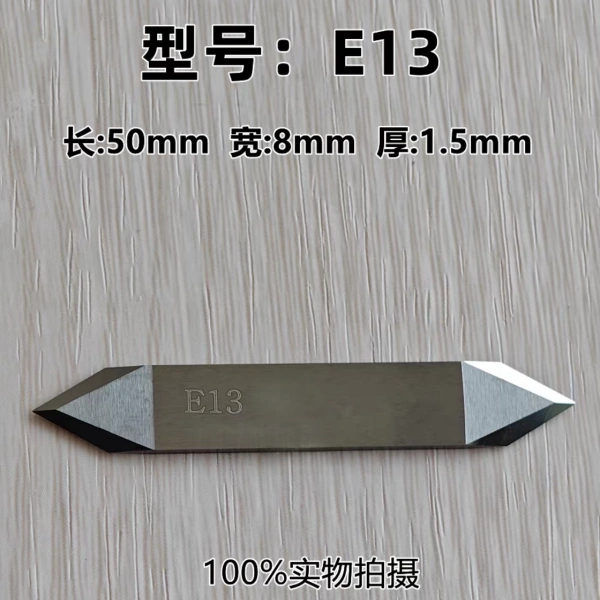

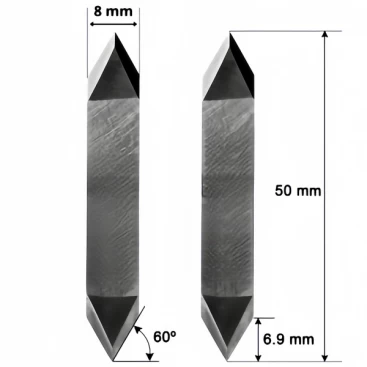

The iEcho E13 double-ended drag blade is made of high-quality tungsten carbide, with a 60° blade angle and flat handle structure, a blade height of 50mm, a thickness of 1.5mm, and a maximum cutting depth of 6.90mm. It can efficiently cut a variety of soft and hard materials including canvas, cardboard, aluminum foil, shoe materials, gasket materials, hard foam, hard plastic, magnetic film, paper, polycarbonate, PVC, self-adhesive film and tarpaulin.
This blade is replaceable and compatible with all iEcho devices using a 1.5mm flat handle interface. It is a high-quality alternative to knives from brands such as Zünd and Esko Kongsberg. It has stable performance, high cutting accuracy, and excellent cost performance.

iEcho E13 blade, Double-ended drag blade, Tungsten carbide drag blade, Kiss cut knife blade, PVC cutting blade, Footwear material cutter, Self-adhesive foil cutting knife, CNC flat-stock drag blade, 60° angle blade, Zünd compatible knife blade, Esko replacement blade
