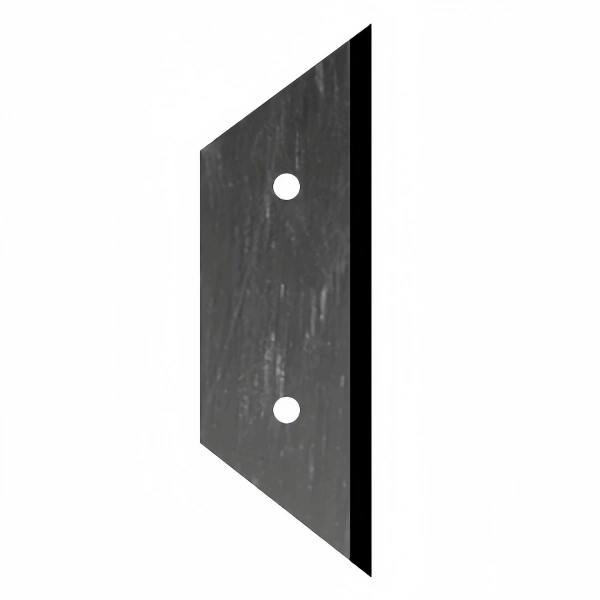

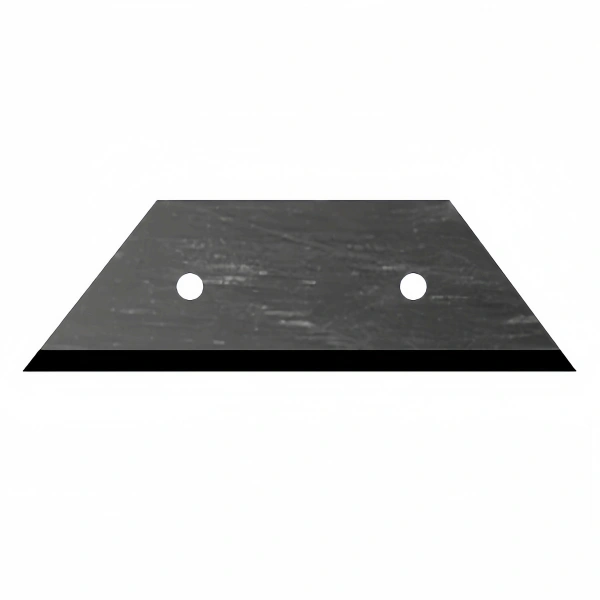

Esko Kongsberg BLD-TZ512 V-cut Knife blades G42448597

Esko Kongsberg BLD-TZ511 blade V-cut Knife G42448589
Esko Kongsberg Milling & Router Bits Kongsberg Routing Systems

Esko Kongsberg BLD-TZ512 V-shaped cutting blade, suitable for corrugated cardboard, plastic board and folding carton, with a thickness of 0.9mm and a cutting depth of up to 17mm. It is suitable for Esko digital cutting systems to ensure high-precision bevel cutting effects.

Category:

Esko Kongsberg BLD-TZ512 V-cut Knife blades G42448597

CUTTER BRAND
Esko Kongsberg

KNIFE HEIGHT
19,00 mm

THICKNESS
0,90 mm

MAX. CUTTING DEPTH
17,00 mm

KNIFE TYPE
Flat, V-cut

MATERIALS
Corrugated cardboard, Corrugated plastic, Folding Carton

KNIFE/BLADE MOUNTING
flat 0,9 mm

Esko blades, Kongsberg blades, V-cut blades, V-cut knives, corrugated cardboard cutting knives, corrugated plastic cutting knives, folding carton blades, flat blades, CNC cutting blades, Esko digital cutting machine accessories, digital cutting tools

Description

Good blade for V-notch and straight cutting with the HD-knife tool through materials such as Re-board, X-board, and triple wall corrugated. Made from a special tungsten carbide alloy, to extend lifetime. Thickness 0,9m

Specifications

C Maximum cutting thickness 17mm – 43/64″


Requirements

To use BLD-TZ512 on your Kongsberg PCS table, you need one of the following configurations.

  • PowerHead on XL/XN/X/V with V-Notch tool holder/HD knife tool 17
  • HD/Dual HD unit on C/XP with V-Notch tool holder/HD knife tool 17

Requirements

Material Sub Category Thickness Method
Corrugated Double wall EB,BC…(5-7mm) recycled Static
Corrugated Triple wall Triple recycle (7-16mm) Static
Corrugated plastic Corrugated plastic < 16mm Static
Foam board soft (PUR) Foam board soft (PUR) 10-20mm Static
Foam board soft (PUR) Foam board soft (PUR) < 12mm V-notch
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm Static
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm V-notch
Honeycomb / Fluted core board Honeycomb- fluted core board 16mm Static
Honeycomb / Fluted core board Honeycomb- fluted core board 16mm V-notch
Lenticular display panels Lenticular display panels < 5mm Static
