Esko-BLD-TZ511-blades
Esko-BLD-TZ511

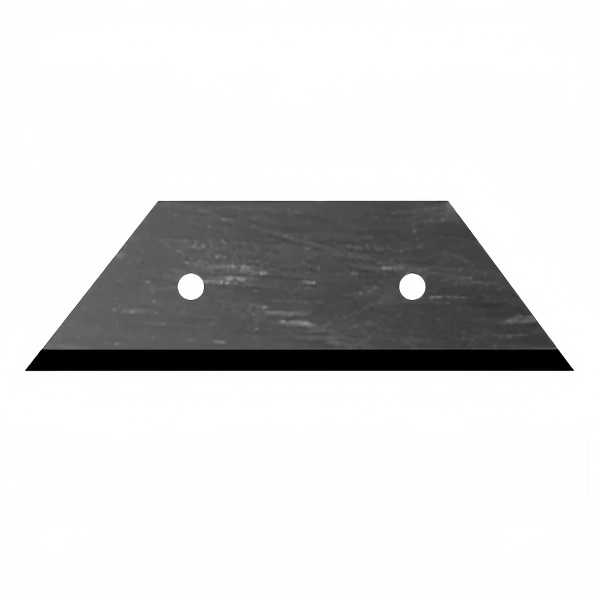

Esko Kongsberg BLD-TZ511 blade V-cut Knife G42448589

Esko Kongsberg BLD-TZ192 Tungsten Carbide Knife Blades (G42424374)
Esko Kongsberg BLD-TZ512 V-cut Knife blades G42448597

Very good blade for V-notch cutting through materials such as Re-board, X board and triple wall corrugated. Cuts materials up to about 17mm. Made from a special Tungsten carbide alloy, to extend cutting cycles. Thickness 0.6mm – .024

Category:

Esko Kongsberg BLD-TZ511 blade V-cut Knife G42448589

CUTTER BRAND
Esko Kongsberg

KNIFE HEIGHT
19,00 mm

THICKNESS
0,60 mm

MAX. CUTTING DEPTH
17,00 mm

KNIFE TYPE
Flat, V-cut

MATERIALS
Corrugated cardboard, Corrugated plastic, Folding Carton

KNIFE/BLADE MOUNTING
flat 0,6 mm

Description

Very good blade for V-notch cutting through materials such as Re-board, X board, and triple wall corrugated. Cuts materials up to about 17mm. Made from a special Tungsten carbide alloy, to extend cutting cycles. Thickness 0.6mm – .024

Specifications

C Maximum cutting thickness 17mm – 43/64″

Requirements

To use BLD-TZ511 on your Kongsberg PCS table, you need one of the following configurations.

  • PowerHead on XL/XN/X/V with V-Notch tool holder
  • HD/Dual HD unit on C/XP with V-Notch tool holder

Cutting Info

Material Sub Category Thickness Method
Corrugated Triple wall Triple recycle (7-16mm) V-notch
Corrugated plastic Corrugated plastic < 12mm V-notch
Corrugated plastic Corrugated plastic < 5mm Static
Foam board soft (PUR) Foam board soft (PUR) < 12mm V-notch
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm V-notch
Honeycomb / Fluted core board Honeycomb- fluted core board 16mm V-notch
