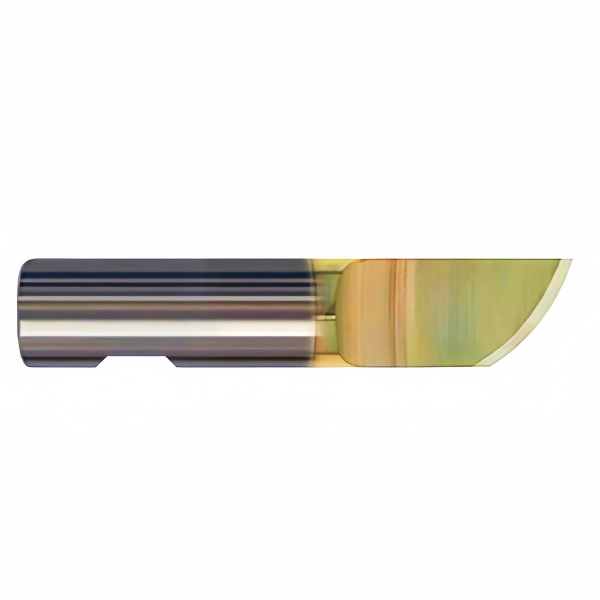

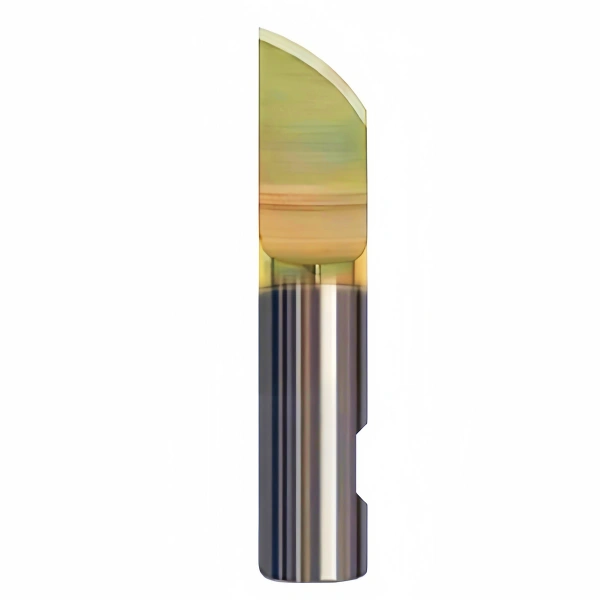

Esko Kongsberg BLD-SR8184 C2 Knife Blades (G34118323)

Esko Kongsberg BLD-SR8184 Knife Blades (G34104398)
Esko Kongsberg BLD-TZ129 Tungsten Carbide Knife Blade (G42435636)

For cutting thin paper and folding cartons. Works well on very fragile and porous materials such as beer coasters with a lot of recycled content. The nominal lag value is 4mm. C2 coated for a longer life time.
Category:

Esko Kongsberg BLD-SR8184 C2 Knife Blades (G34118323)

Description

For cutting thin paper and folding cartons. Works well on very fragile and porous materials such as beer coasters with a lot of recycled content. The nominal lag value is 4mm. C2 coated for a longer life time.

Specifications

The Tungsten carbide thin coating provides a super hard and smooth surface with 60% reduced friction. This means less lift and pull when milling, ensuring less power consumption. It increases therefore productivity for sign applications. The coating extends x6 the lifetime of the product, it’s biocompatible and harmless for the environment.

D Shank diameter 8mm
C Maximum cutting thickness 5mm


Requirements

To use BLD-SR8184 C2 on your Kongsberg PCS table, you need one of the following configurations.

C/XP XL/XN/X/V XE Tool Adapter
x HD/Dual HD Unit 34118489
x PowerHead 34118489
x x RM Knife n/a
x x x CorruSpeed n/a

Cutting Info



Material Sub Category Thickness Method
Carpet materials w/ rubber backing Carpet materials w/ rubber backing < 4mm Static
Foam board soft (PUR) Foam board soft (PUR) < 5mm Static
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm Static
Folding carton Folding carton Folding carton Static
Lenticular display panels Lenticular display panels < 5mm Static
Paper Paper < 160g/m2 Static
Porous paper (beer coasters) Porous paper (beer coasters) 4mm Static
Solid board Display board 3mm Static

Dimensions

Length (cm) 4
Width (cm) 0.8
Height (cm) 0.8
Net weight (kg) 0.02
