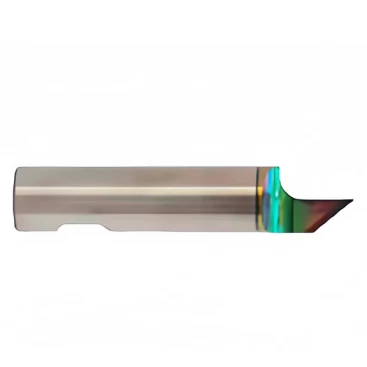

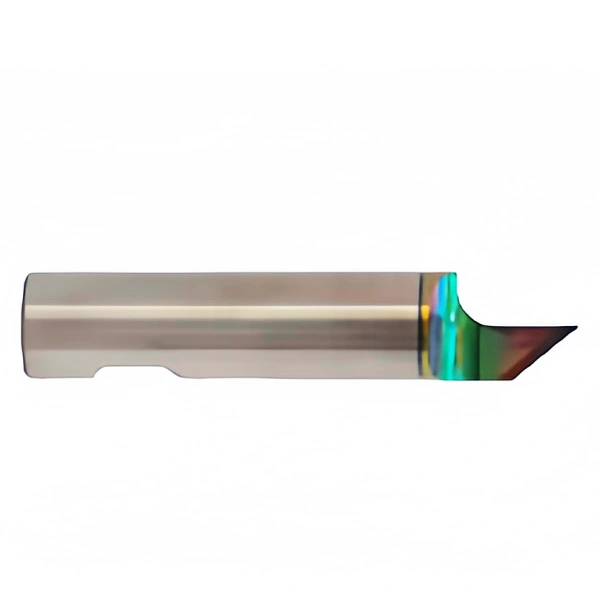

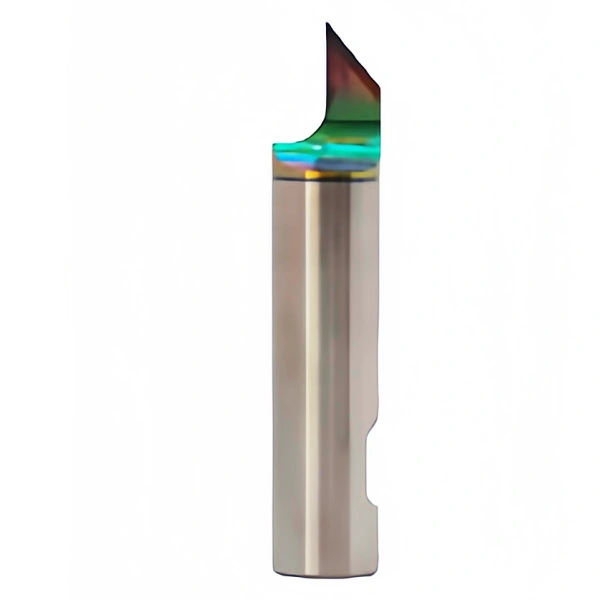

Esko Kongsberg BLD-SR8172 C2 Knife Blade (G42475822)

Esko Kongsberg BLD-SR8172 Tungsten Carbide Knife Blade (G42460402)
Esko Kongsberg BLD-SR8173A Carbide Knife Blade (G42460949)

Long life tungsten carbide blade for thinner flexible materials such as folding carton, polyester film, leather, vinyl, paper. 40° cutting edge.

Category:

Esko Kongsberg BLD-SR8172 C2 Knife Blades (G42475822)

Description

Long-life tungsten carbide blade for thinner flexible materials such as folding cartons, polyester film, leather, vinyl, and paper. 40? cutting edge.

Specifications

The Tungsten carbide thin coating provides a super hard and smooth surface with 60% reduced friction. This means less lift and pull when milling, ensuring less power consumption. It increases therefore productivity for sign applications. The coating extends x6 the lifetime of the product, it’s biocompatible and harmless for the environment.

D Shank diameter 8mm
C Maximum cutting thickness 4.5 mm – 3/16″

Requirements

To use BLD-SR8172 C2 on your Kongsberg PCS table, you need one of the following configurations.

C/XP XL/XN/X/V XE Tool Adapter
x HD/Dual HD Unit 34118489
x PowerHead 34118489
x x RM Knife n/a
x x x CorruSpeed n/a



Cutting Info

Material Sub Category Thickness Method
Adhesive (decal) vinyl Adhesive (decal) vinyl Standard thickness Through
Adhesive (decal) vinyl Adhesive (decal) vinyl Thicker, tougher Static fine detail
Corrugated Microflute Microflute Static
Corrugated Single Wall F,E..(1-3mm) virgin Static
Corrugated plastic Corrugated plastic < 5mm Static
Flexible plastic sheet Flexible plastic sheet < 2mm Static
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm Static
Folding carton Folding carton Folding carton Static
Lenticular display panels Lenticular display panels < 5mm Static
Magnetic foil Magnetic foil Magnetic foil Static
Paper Paper < 160g/m2 Static
Solid board Display board 3mm Static

Dimensions

Length (cm) 4
Width (cm) 0.8
Height (cm) 0.8
Net weight (kg) 0.02
