Esko-BLD-SR8172
Esko-BLD-SR8172blades

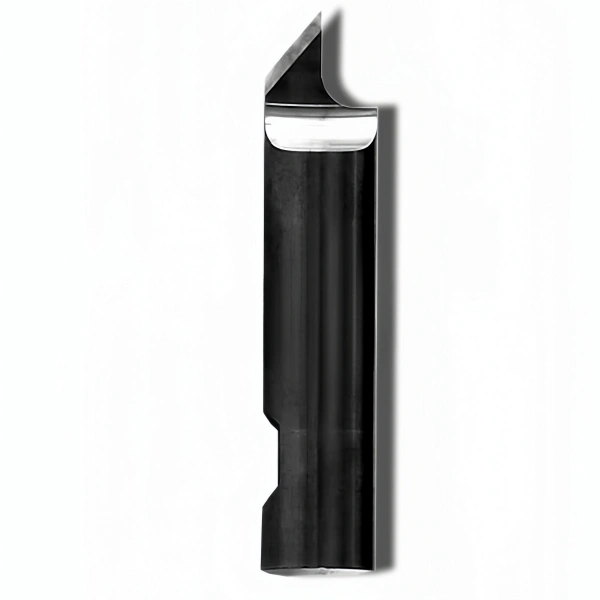

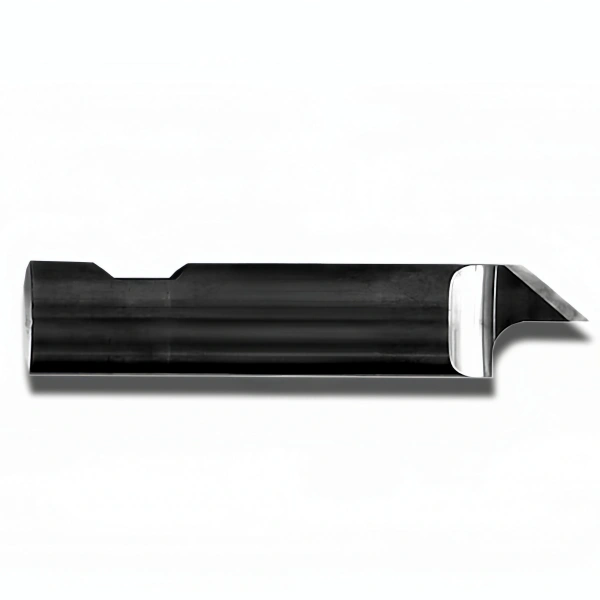

Esko Kongsberg BLD-SR8172 Tungsten Carbide Knife Blade (G42460402)

Esko Kongsberg BLD-SR8171A Knife Blades (G42460956)
Esko Kongsberg BLD-SR8172 C2 Knife Blade (G42475822)

The Esko Kongsberg BLD-SR8172 blade is designed for thin, flexible materials, with a blade height of 40mm, a cutting angle of 40°, and a maximum cutting depth of 4.5mm. Compatible with a wide range of materials such as folding carton, leather, vinyl and paper, it features a rounded 8mm handle for static cutting. Its durable carbide material ensures long-term use,

Category:

Esko Kongsberg BLD-SR8172 Tungsten Carbide Knife Blade (G42460402)

CUTTER BRAND
Esko Kongsberg

KNIFE HEIGHT
40,00 mm

ANGLE
40°

MAX. CUTTING DEPTH
4,50 mm

MATERIALS
Foil, Folding Carton, Leather, Paper, Vinyls

KNIFE TYPE
Drag blade, Weldon

KNIFE/BLADE MOUNTING
round Ø 8 mm

Long-life tungsten carbide blade for thinner flexible materials such as folding cartons, polyester film, leather, vinyl, and paper. Length: 40mm. Cylindrical 8mm. The maximum cutting thickness is about 4,5mm. 40′ cutting edge. The nominal lag value is 0mm.

Cutting Info

Material Sub Category Thickness Method
Adhesive (decal) vinyl Adhesive (decal) vinyl Standard thickness Through
Adhesive (decal) vinyl Adhesive (decal) vinyl Thicker, tougher Static fine detail
Corrugated Microflute Microflute Static
Corrugated Single Wall F,E..(1-3mm) virgin Static
Corrugated plastic Corrugated plastic < 5mm Static
Flexible plastic sheet Flexible plastic sheet < 2mm Static
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm Static
Folding carton Folding carton Folding carton Static
Lenticular display panels Lenticular display panels < 5mm Static
Magnetic foil Magnetic foil Magnetic foil Static
Paper Paper < 160g/m2 Static
Solid board Display board 3mm Static
