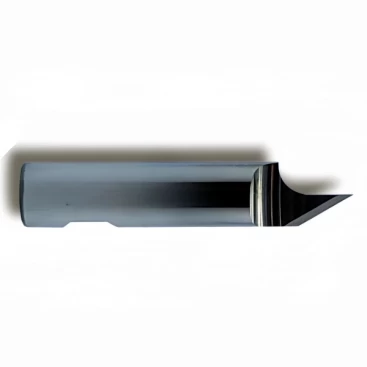

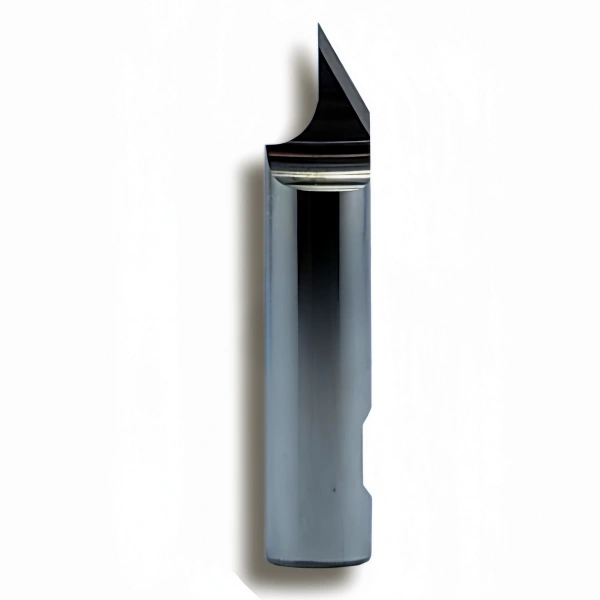

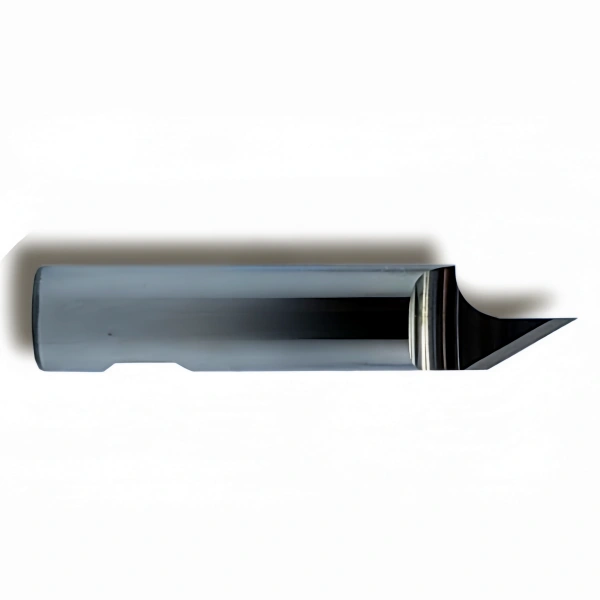

Esko Kongsberg BLD-SR8170 Knife Blades (G42460394)

Esko Kongsberg BLD-SR8160 Tungsten Carbide Knife Blades (G34094458)
Esko Kongsberg BLD-SR8170 C2 Oscillation Knife Blade (G42475814)

Suitable for Esko Kongsberg automatic cutting machines, Weldon round handle mounting (8mm diameter). Knife height 40mm, angle 50°, maximum cutting depth 6.5mm. Suitable for cutting a variety of materials such as corrugated plastics, folding cartons, gasket materials, magnetic films, polypropylene, polycarbonate and PVC, durable and efficient.

Category:

Esko Kongsberg BLD-SR8170 Knife Blades (G42460394) compatible for Esko Kongsberg automated cutting

CUTTER BRAND
Esko Kongsberg

ANGLE
50°

KNIFE HEIGHT
40,00 mm

MAX. CUTTING DEPTH
6,50 mm

MATERIALS
Corrugated plastic, Folding Carton, Gasket materials, Magnetic foil, Polipropylen, Polycarbonate, PVC

KNIFE TYPE
Drag blade, Weldon

KNIFE/BLADE MOUNTING
round Ø 8 mm

Requirements

To use BLD-SR8170 on your Kongsberg PCS table, you need one of the following configurations.

C/XP XL/XN/X/V XE Tool Adapter
x HD/Dual HD Unit 34118489
x PowerHead 34118489
x x RM Knife n/a
x x x CorruSpeed n/a



Cutting Info

Material Sub Category Thickness Method
Adhesive (decal) vinyl Adhesive (decal) vinyl Standard thickness Static fine detail
Adhesive (decal) vinyl Adhesive (decal) vinyl Standard thickness Through
Corrugated plastic Corrugated plastic < 5mm Static
Flexible plastic sheet Flexible plastic sheet < 2mm Static
Foamed PVC / PS Foamed PVC / PS (Forex®, Sintra®) < 5mm Static
Folding carton Folding carton Folding carton Static fine detail
Folding carton Folding carton Folding carton Static
Lenticular display panels Lenticular display panels < 5mm Static
Magnetic foil Magnetic foil Magnetic foil Static fine detail
Solid board Display board 3mm Static
