Esko Kongsberg BLD-SR6320 Carbide Knife Blades (G42475947)

Esko Kongsberg BLD-SR6317 Carbide Knife Blades G42460410
Esko Kongsberg BLD-SR6351 Oscilating knife Blade G42456921

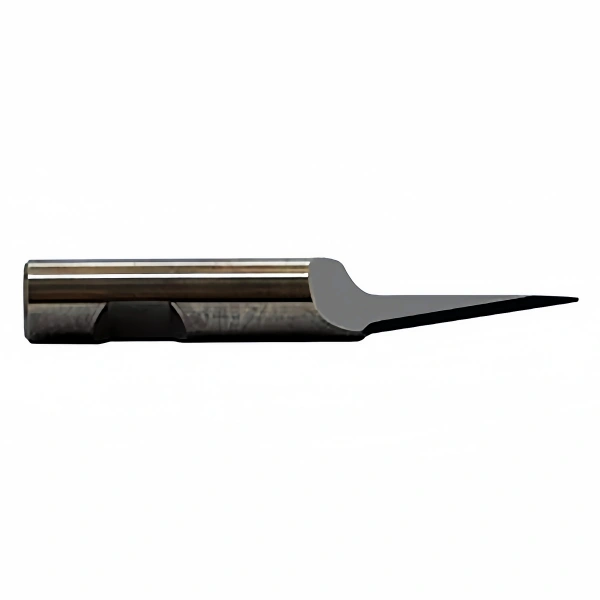

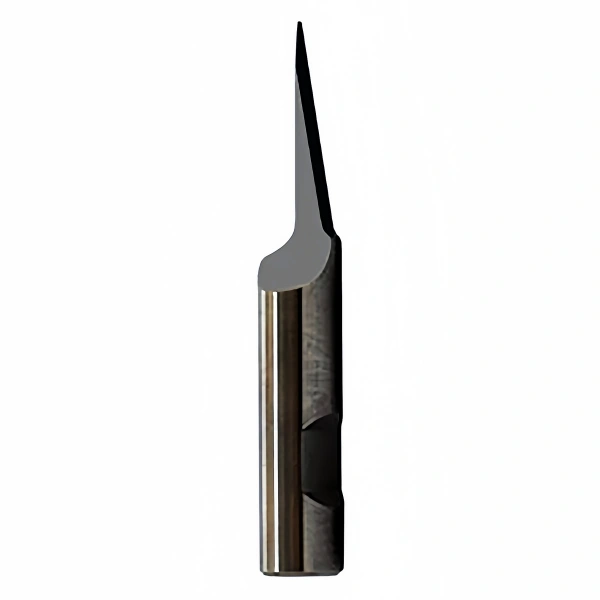

Esko BLD-SR6320 (G42475947) tungsten carbide 0-lag oscillating knife blade with 6mm shank, ideal for soft foam board and corrugated plastic cutting on Kongsberg high-frequency knife tools.

Category:

Esko Kongsberg BLD-SR6320 Knife Blades (G42475947) compatible for Esko Kongsberg automated cutting

Description

A more slender tungsten carbide blade produces less overcut. Good blade for cutting materials like soft foam board. This is a 0-lag knife blade.

Specifications

D Shank diameter 6mm
C Maximum cutting thickness 14mm – 1/2″


Requirements

To use BLD-SR6320 on your Kongsberg PCS table, you need one of the following configurations:

  • Reciprocating/MP HI Frequency knife tool for XL/XN/X/V with adapter 34053207
  • Long stroke knife tool for XL/XN/X/V
  • VibraCut/HI Frequence VibraCut knife tool for C / XP with adapter 34046425

Cutting Info

Material Sub Category Thickness Method
Corrugated plastic Corrugated plastic < 12mm High-frequency oscillating
Corrugated plastic Corrugated plastic < 12mm Oscillating
Foam board soft (PUR) Foam board soft (PUR) 10-20mm High-frequency oscillating

Dimensions

Length (cm) 4
Width (cm) 0.4
Height (cm) 0.6
Net weight (kg) 0.014

Product Description:

The Esko Kongsberg BLD-SR6320 blade (G42475947) is a slim carbide oscillating blade designed to reduce overcutting and improve cutting accuracy, especially for thick materials such as soft foam board (PUR) and corrugated plastic board.

This is a 0-lag design blade (0-lag blade), which is responsive and accurate in high-speed oscillating cutting. It is compatible with the following Esko Kongsberg PCS CNC platforms

Esko BLD-SR6320 blade, G42475947 original knife, 0 lag oscillating knife, slim oscillating blade, high frequency blade, foam board cutting knife, corrugated plastic blade, Esko CNC oscillating tool, Esko foam cutting knife, tungsten steel oscillating knife
